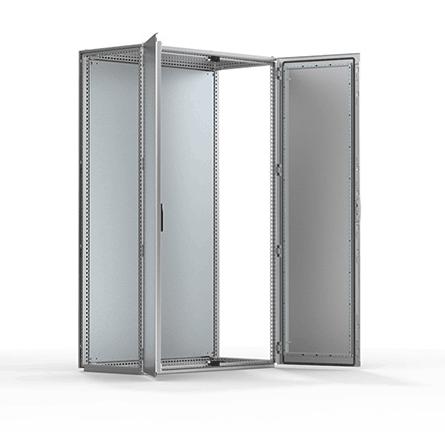

nVent Hoffman MCDS20126 IEC Mild Steel MCS Floor Standing Enclosure
$7,992$9,590 (-17%)
nVent Hoffman MCDS20126 IEC Mild Steel MCS Floor Standing EnclosureThe stainless steel double door modular floor standing enclosure range, MCDS, is ideal for installation in confined spaces where a single door, when opened, would take up too much space in front of the enclosure. The doors' loading capacity also…
nVent Hoffman MCDS20126 IEC Mild Steel MCS Floor Standing EnclosureThe stainless steel double door modular floor standing enclosure range, MCDS, is ideal for installation in confined spaces where a single door, when opened, would take up too much space in front of the enclosure. The doors' loading capacity also increases as it is divided over two doors. With a IP 55 protection degree, components inside the enclosure are well protected and makes it well suited for almost any environment, grade dependent.
Specifications
| Enclosure Hinge Type | Standard Hinge |
|---|---|
| Enclosure Depth | 24" |
| Enclosure Mount Type | Free-Standing |
| Enclosure Number of Doors | 2 Door |
| Enclosure Width | 48" |
| Enclosure Height | 79" |
| Line | Global IEC |
| Enclosure Environment Rating | Indoor |
| Enclosure Door Type | Solid |
| Enclosure Latch Type | Screw |
| Enclosure Composition | Steel |
| Component | IEC Enclosure |
| Enclosure NEMA Rating | NEMA Type 12 |
| Enclosure NEMA Rating | NEMA Type 13 |
| Manufacturer | Hoffman |
| Enclosure Lock Type | Keylock |
Features
Material: AISI 304L pre-grained stainless steel / AISI 316L. Frame: 1.5 mm. Door: 2 mm. Rear, roof and side panels: 1.5 mm. Bottom plates: 1.5 mm stainless steel. Mounting plate: 3 mm galvanized steel.
Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660.
Door: Mounted with four hinges. Including door frame with 25 mm hole pattern. Doors cannot be reversed. Separate doors to be ordered for left hand door locking.
Side panels: Supplied as an accessory.
Roof panel: Removable.
Lock: Espagnolette 4-point locking system in the main door and 2-point locking system in the slave door. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handle are available as accessories.
Bottom plates: Two piece bottom plate in 1200 mm width, with injected polyurethane gasket to ensure maximum sealing.
Mounting plate: Double folded and adjustable in depth by steps of 25 mm, with the MPD02 accessory. Mounting plate is delivered, attached on the outside of the enclosure packaging.
Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
Finish: 400 pre-grained stainless steel.
Protection: Complies with IP 55
TYPE 12
IK 10.
Mounting requirements: Standard delivery ready for combined installation. For stand-alone installation, add side panels.
Delivery: Frame with fitted doors, rear panel, roof panel, bottom plates, mounting plate and door frame. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow baying without removal. Packing material is recyclable.
