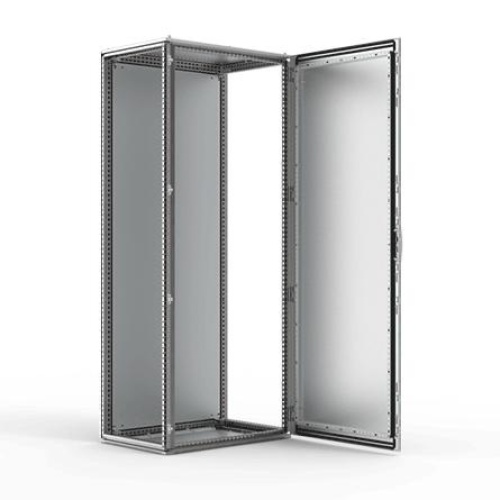

nVent Hoffman MCSS18085 IEC Mild Steel MCS Floor Standing Enclosure
$5,287$6,344 (-17%)
nVent Hoffman MCSS18085 IEC Mild Steel MCS Floor Standing EnclosureThe stainless steel single door modular floor standing enclosure range, MCSS, with a IP 55 protection degree, is available off the shelf in many different sizes. The risk for component failure, and with that unnecessary downtime, is eliminated as water…
nVent Hoffman MCSS18085 IEC Mild Steel MCS Floor Standing EnclosureThe stainless steel single door modular floor standing enclosure range, MCSS, with a IP 55 protection degree, is available off the shelf in many different sizes. The risk for component failure, and with that unnecessary downtime, is eliminated as water and dust are prevented from entering the enclosure. This enclosure range is well suited for almost any environment, grade dependent.
Specifications
| Enclosure Hinge Type | Standard Hinge |
|---|---|
| Enclosure Depth | 20" |
| Enclosure Mount Type | Free-Standing |
| Enclosure Width | 32" |
| Enclosure Height | 71" |
| Line | Global IEC |
| Enclosure Environment Rating | Indoor |
| Enclosure Door Type | Solid |
| Enclosure Latch Type | Screw |
| Enclosure Composition | Steel |
| Component | IEC Enclosure |
| Enclosure Number of Doors | 1 Door |
| Enclosure NEMA Rating | NEMA Type 12 |
| Enclosure NEMA Rating | NEMA Type 13 |
| Manufacturer | Hoffman |
| Enclosure Lock Type | Keylock |
Features
Material: AISI 304L pre-grained stainless steel / AISI 316L. Frame: 1.5 mm. Door: 2 mm. Rear, roof and side panels: 1.5 mm. Bottom plates: 1.5 mm stainless steel. Mounting plate: 3 mm galvanized steel.
Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660.
Door: Mounted with four hinges allowing left or right hand opening. Including door frame with 25 mm hole pattern.
Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting.
Roof panel: Removable.
Lock: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit 3 mm insert. Standard inserts, cylinders, lift handles and T-handle are available as accessories.
Bottom plates: One piece bottom plate, with injected polyurethane gasket to ensure maximum sealing.
Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm, with the MPD02 accessory. Mounting plate is supplied, attached on the outside of the enclosure packaging.
Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
Finish: 400 pre-grained stainless steel.
Protection: Corresponds with IP 55
TYPE 12
IK 10.
Mounting requirements: Standard delivery ready for combined installation. For stand-alone installation, add side panels.
Delivery: Frame with fitted door, rear panel, roof panel, bottom plate, mounting plate and door frame. Delivery also includes earthing bolts. Delivered on a pallet which is identical to the width of the enclosure to allow baying without removal. All packing material is recyclable.
