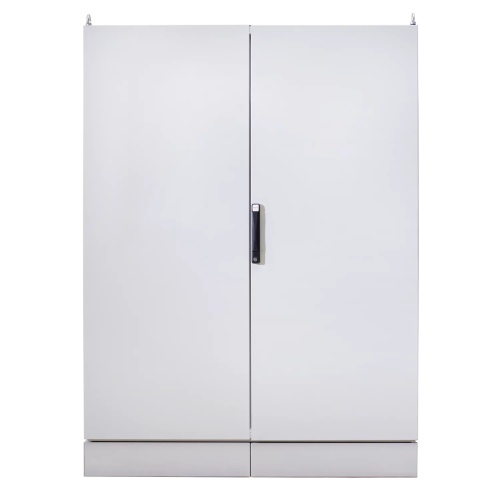

nVent Hoffman P2DO208HF PROLINE G2 Solid Doors (Single or Overlapping Double)

Overlapping double doors available for frames 800 mm wide and greater

Seamless polyurethane gasket (UL Component Recognized) provides a water-tight, dust-tight seal against moisture and contaminants

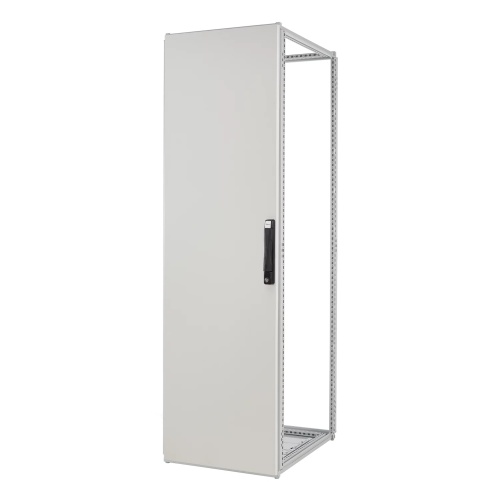

Single doors available for frames up to 1000 mm wide

Door bar system on all doors

Low-profile Swing Handle with key lock, other options available

Smooth Glide latching system – for a smooth, reliable and repeatable door close over enclosure lifetime

Timed latch engagement to ensure top and bottom of door catch reliably

Single doors can be hinged on left or right (default left), overlapping double doors can have the primary door as the left or right door (default right)

Key lock handle standard, other options available

3-point latch system for doors ≥ 1000 mm in height

Durable, double-flanged latch rod and three Delrin® rollers to prevent metal-on-metal grinding

Overlapping Double Doors – Additional Specifications: Primary door with Smooth Glide latching system, Secondary door has two latch points with a center lever to ensure secure door closure

Solid Doors are finished with paint over plated surfaces

140-degree hinging standard (180-degree hinge option available)

Can be used on front or rear of enclosure, can be used on the sides of enclosure with side door adapter (not included)

Two grounding studs

All mounting hardware included

Sold individually

Door can be reversed without removing the side covers
