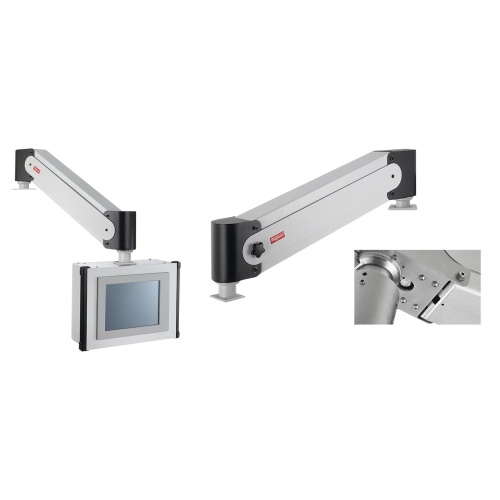

nVent Hoffman VHD26 SYSPEND VHD 26″ Motion Arm Pendant Arm
$2,787$3,345 (-17%)
nVent Hoffman VHD26 SYSPEND VHD 26″ Motion Arm Pendant Arm
nVent Hoffman VHD26 SYSPEND VHD 26" Motion Arm Pendant Arm
Specifications
| Pendant Arm Component Mounting | Arm To Tube |
|---|---|
| Pendant Arm Component NEMA Rating | Type 4 |
| Pendant Arm Component Composition | Steel |
| Pendant Arm Component NEMA Rating | Type 12 |
| Component | Arm System |
| Line | SYSPEND VHD |
| Pendant Arm Component Rotation | 330 Degrees |
| Manufacturer | Hoffman |
| Pendant Arm Component Load Rating | 45-125 Lbs. |
Features
Tension adjustment at front of the arm provides additional fine-tuning of lifting force
Field-adjustable gas spring counterbalance allows the user to adjust lifting force by turning an adjustment mechanism under the arm
Angle of gas springs is adjustable (not the pressure), allows lifting force to be increased or decreased at any time for changes in load
Easily attach to an HMI enclosure using a 60-x-60-mm enclosure mounting pattern (enclosure must be ordered separately)
36-in. arm supports loads of 25-75 lb. with 20-in. of vertical height adjustment
26-in. arm supports loads of 45-125 lb. with 13-in. of vertical height adjustment
1.3-in. internal cable pathway maintains NEMA Type 4 and 12 enclosure rating and protects wires and cables
Optional floorpost available
Standard models are available with machine-top mounting (wall-mount and post-mount adapters sold separately)
Enclosure and arm can be swiveled 330 degrees with swivel stops available in 30-degree increments
Gasketed mounting surfaces at both ends of arm maintain seal integrity
