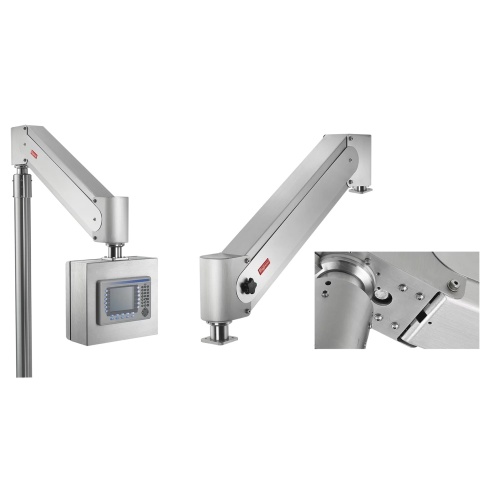

nVent Hoffman VHDS26 Stainless Steel VHDS 26″ Motion Arm Pendant Arm

Angle of gas springs is adjustable (not the pressure), allows lifting force to be increased or decreased at any time for changes in load

36-in. arm supports loads of 25-75 lb. with 20-in. of vertical height adjustment

Field-adjustable gas spring counterbalance allows the user to adjust lifting force by turning an adjustment mechanism under the arm

Tension adjustment at front of the arm provides additional fine-tuning of lifting force

26-in. arm supports loads of 45-125 lb. with 13-in. of vertical height adjustment

Corrosion resistant stainless steel housing with provisions for water drainage from arm

Easily attach to an HMI enclosure using a 60-x-60-mm enclosure mounting pattern (enclosure must be ordered separately)

Standard models are available with machine-top mounting (wall-mount and post-mount adapters sold separately)

Enclosure and arm can be swiveled 330 degrees with swivel stops available in 30 degree increments

Gasketed mounting surfaces at both ends of arm maintain seal integrity

1.25-in. internal cable pathway maintains Type 4, 4X and 12 enclosure rating and protects wires and cables

Optional floorpost available

Adapter is available to attach the arm to Syspend Sanitary HMI enclosure quickly
