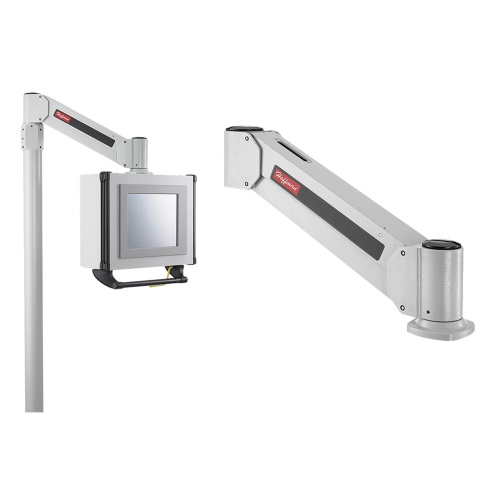

nVent Hoffman VL22 SYSPEND VL 22″ Motion Arm Pendant Arm
$2,196$2,635 (-17%)
nVent Hoffman VL22 SYSPEND VL 22″ Motion Arm Pendant Arm for HMI enclosure. 6.72″ x 25.5″ x 3.5″ (171 x 648 x 89 mm) Aluminum construction with light gray finish. Supports load of 30 to 100 lbs. Field adjustable gas spring counterbalance.
nVent Hoffman VL22 SYSPEND VL 22" Motion Arm Pendant Arm for HMI enclosure. 6.72" x 25.5" x 3.5" (171 x 648 x 89 mm) Aluminum construction with light gray finish. Supports load of 30 to 100 lbs. Field adjustable gas spring counterbalance.
Specifications
| Pendant Arm Component Mounting | Arm To Tube |
|---|---|
| Pendant Arm Component Composition | Aluminum |
| Pendant Arm Component NEMA Rating | Type 4 |
| Pendant Arm Component NEMA Rating | Type 12 |
| Component | Arm System |
| Line | SYSPEND VL |
| Pendant Arm Component Rotation | 320 Degrees |
| Manufacturer | Hoffman |
| Pendant Arm Component Load Rating | 30-100 Lbs. |
Features
Release handle automatically locks arm in place when repositioned vertically
Lifting force cannot be increased once spring pressure is reduced
Provides 13 in. of vertical height adjustment
Easily attach to an HMI enclosure using a 60-x-60-mm enclosure mounting pattern (enclosure must be ordered separately)
Gas springs are set to maximum pressure (100 lb. load) and lifting force can be reduced through a sealed access cap in the top of the arm
Field-adjustable internal gas spring counterbalance supports loads of 30-100 lbs.
1.4-in. internal cable pathway maintains NEMA Type 4 and 12 enclosure rating and protects wires and cables
Optional floorpost available
Mounting adapter is required with options of wall-mount, machine-top-mount and post-top-mount
Enclosure and arm can be swiveled 320 degrees
Gasketed mounting surfaces at both ends of arm maintain seal integrity
