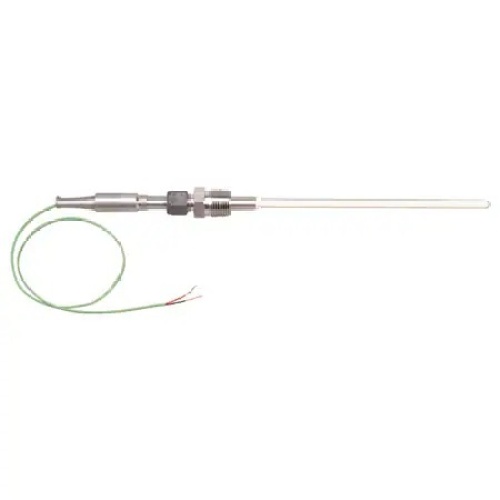

Omega BAT-TJ36-ST4-24-SB-SHX-M-12 EXOTIC PROBE
$1,832
Platinum T/C Assembly, Rugged Transition Joint, Extreme Temp, Ceramic Miniature CONN, B Type, 0 °C to 1650 °C, 0.25 ″ x 12 ″ Probe, 40 ″ Cable, Ceramic, UGND, ANSI (Std), BAT-TJ, Each
Platinum T/C Assembly, Rugged Transition Joint, Extreme Temp, Ceramic Miniature CONN, B Type, 0 °C to 1650 °C, 0.25 " x 12 " Probe, 40 " Cable, Ceramic, UGND, ANSI (Std), BAT-TJ, Each
Specifications
| Manufacturer | Omega Engineering |
|---|---|
| Component | Thermocouple Probe |
| (Instrument-Sensor) Type | Thermocouple |
| (Instrument-Sensor) Temperature Range | 0 °C – 1650 °C |
Features
NHX Standard Ceramic Connector Rated to 650°C (1200°F)
HSTW Standard Connector Liquid Crystal Polymer Rated to 260°C (500°F)
Up to 1650°C (3000°F) Rating
Oxidizing or Reducing Atmospheres
Cable Length40 in
Color Code StandardANSI
Insulation Note1m (40") 24 AWG (0.020")
Solid Braided Fiberglass
Insulated Lead Wire
Junction TypeUngrounded
Number of Wires2
Probe Diameter0.25 in
Probe TypeRugged Transition Joint High-Temperature Thermocouple Probe
Process Temperature, Max1650 °C
Process Temperature, Min0 °C
Sheath MaterialCeramic
Temperature Probe StyleExtreme Temperature Probe
Temperature Sensor TypeThermocouple
Wire TypeSolid
