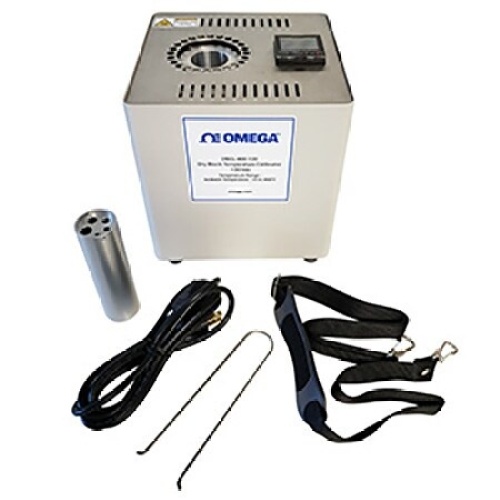

Omega DBCL-400-240 DRY BLOCK TEMPERATURE CALIBRATOR – 240 M

Maximum temperature of 450°C (850°F)

Minimum temperature of 5°C (9°F) above ambient

An independent over-temperature cutout, 470°C (875°F)

Heat up time 25° C to 400°C with stability at 12 minutes

Accuracy± 0.4 °C

Accuracy Detail±0.4°C (50 to 400°C) ±0.7°F (122 to 752°F) ±0.7°C (400 to 450°C) ±1.3°F (752 to 850°F)

Cool-Down Time NoteCool down 400°C to 100°C: 20 minutes

Dimensions Note8.75 x 8 x 8 inches/222.25 x 203.2 x 203.2 mm *excluding the carrying strap

Display Resolution0.1°

Frequency50/60 Hz

Heat-Up Time NoteHeat up time 25° C to 400°C: 12 minutes

Height222.25 mm

Length203.2 mm

Operating Temperature, Max40 °C

Operating Temperature, Min5 °C

Power Consumption900 W

Process Temperature, Max450 °C

Process Temperature, Min5 °C

Process Temperature Note5°C/9°F above ambient to 450°C/850°F

Temperature Uniformity: 0.020°C at 200°C & 0.030°C at 400°C

Relative Humidity, Max0.95

Relative Humidity NoteUp to 95% relative humidity, non-condensing

Temperature Overload ProtectionFan Cooling: Automatic

Overtemperature Limit: 470 °C

Temperature Stability±0.050°C (50 to 400°C) ±0.090°F (122 to 752°F) (After 15 minutes)

Weight5 kg

Width203.2 mm
