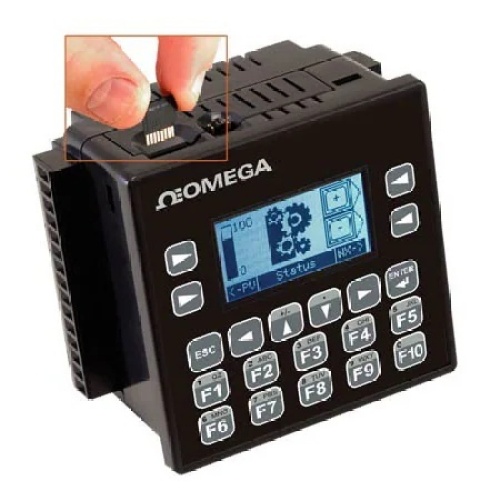

Omega HE-XT105 OCS CONTROLLER W/INTERFACE
$3,273$3,927 (-17%)
All-In-One Controller, PLC, HMI, I/O & Data Logging, 1/4 DIN, 128 x 64 Pixel, XLe Series OCS with DC/DC & Universal Analog I/O, 12 DC O/P, 2 Universal Analogue I/P, 2 Analogue O/P, OCS XL Series, Each
All-In-One Controller, PLC, HMI, I/O & Data Logging, 1/4 DIN, 128 x 64 Pixel, XLe Series OCS with DC/DC & Universal Analog I/O, 12 DC O/P, 2 Universal Analogue I/P, 2 Analogue O/P, OCS XL Series, Each
Specifications
| Component | PLC |
|---|---|
| Manufacturer | Omega Engineering |
Features
PLC + Operator Interface
Free Programming Software
Removable Mass Data Storage (MicroSDTM)
Supports Data Logging
Status Controlfalse
Additional Features 1Ethernet Support, Telephone Modem Support, Wireless Modem Support, Cell Modem Support
Control CharacteristicsLogic Scan Rate: 1.2 mS/K
Local Comment Storage: Yes
Floating Point Support: Yes
Auto Tune PID capable: Yes
Controller TypeSelectable
Data InterfaceRS232, RS485
Digital I/O NoteMaximum Upper Threshold: 8 Vdc Minimum Lower Threshold: 3 Vdc OFF to ON Response: 1 ms ON to OFF Response: 1 ms High Speed Counter(HSC) Switching Rate: 10 kHz totalizer/pulse, edges, 5 kHz frequency/pulse, width, 2.5 kHz quadrature
Electrical OutputSourcing/10 K pull-Down
Enclosure RatingsIP66, NEMA Type 4X
Height95.1 mm
Impedance Input10 kΩ
KeypadTotal Keys: 20 (XLe) Function Keys: 10 (XLe) Numeric Keys: Shared (XLe)
Length63.9 mm
Memory CardUpto 2 GB
Memory NoteLadder Logic Memory: 256 kB
Network and CommunicationsIntegrated CsCan Network: Yes Maximum CsCan Distance: 189 m (6000') Programming Over Network: Yes Peer-to-Peer Message: Yes DeviceNet/PROFIBUS Master: No
Operating Temperature, Max50 °C
Operating Temperature, Min0 °C
Supply Voltage12 to 24 Vdc
Weight0.354 kg
Width95.1 mm
