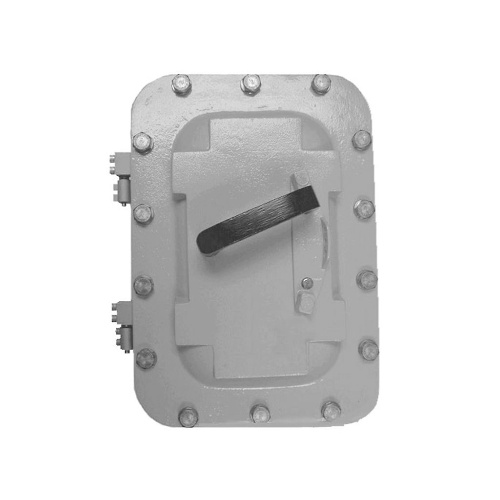

O‑Z/Gedney™ NEBB6036FDSAS1 FUSED DISCONNECT SWITCH 60A W/AS1

Explosionproof, dust-ignitionproof, watertight

Precision machined flame path between box and cover. O-ring gasket insures watertight integrity

15 to 1200 Amps, 240 Vac, 480 Vac, 600 Vac, 125/250 Vdc

Bolt on stainless steel slotted mounting feet

Stainless steel, captive Quad-Lead® cover bolts are standard (disengaged in 1-1/2 turns)

Ground lug package and installation instructions for termination of ground wire enclosed

External operating handle with stops for limiting handle travel

Breaker operators can be locked in the ON or OFF position (up to 3 padlocks)

External flange maximizes internal space

Standard outlets top and bottom for line and load wiring. Plugged ½” outlets top and bottom for breather and drain

Breakers mounted on a galvanized steel removable pan

Enclosures are designed to accept GE, Square D, Siemens and Cutler-Hammer circuit breakers
