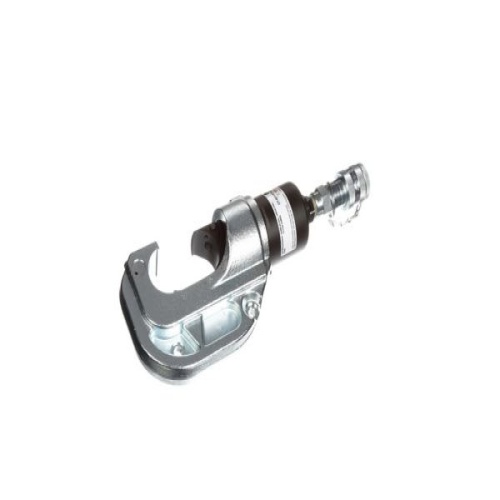

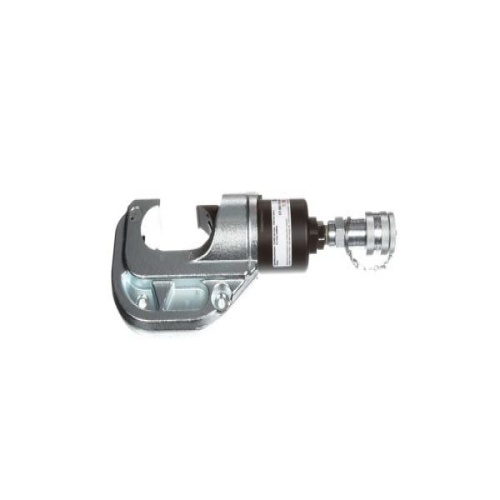

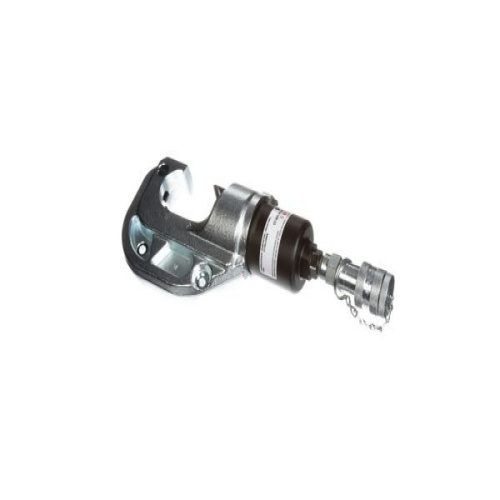

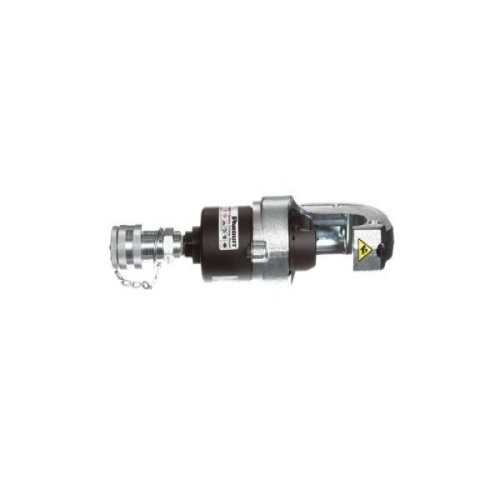

Panduit CT-920CH Pan-Lug™ CT-920CH Hydraulic Crimp Head
$2,237$2,685 (-17%)
Panduit CT-920CH When partnered as a complete Panduit set, the Panduit® BlackFin® Crimping Tool provides continuous crimping operation. Plus, the open C-crimp head design allows easy loading of crimping dies and connectors, saving time. The crimp tool has a force of 12 tons and crimps #8 AWG – 750 kcmil copper code,…
Panduit CT-920CH When partnered as a complete Panduit set, the Panduit® BlackFin® Crimping Tool provides continuous crimping operation. Plus, the open C-crimp head design allows easy loading of crimping dies and connectors, saving time. The crimp tool has a force of 12 tons and crimps #8 AWG – 750 kcmil copper code, #8 AWG – 535 kcmil copper flex, #6 AWG – 600 kcmil aluminum, 10mm2 – 400 mm2 copper class 2 metric, 10mm2 – 300mm2 copper class 5f and 6f metric and #6 AWG – 250 kcmil copper code Direct Burial Grounding connectors. Includes Parker type quick-connect fitting and heavy duty carrying bag. Recommended for use with Panduit CT-902HP hydraulic pump with CT-900HPH hydraulic hose and CD-920 or CD-930 crimp dies, sold separately.
Specifications
| Manufacturer | Panduit |
|---|---|
| Sub Brand | Pan-Lug |
| Component | Hydraulic Crimp Head |
Features
Application : Panduit Copper and Aluminum compression connectors using Panduit Crimping Dies.
Incorporates Parker type quick-connect fittings to ease installation and save time
Requires 10,000 psi hydraulic pump system (recommended Panduit CT-902HP pump and accessories)
Durable crimp head design for long life
Open "C" head design allows for easy loading of crimping dies and connectors, saves time
Uses Panduit CD-920 and CD-930 crimp dies to provide easy matching of crimping die to connector
Dies installed using spring loaded die retention pins, no need for tools
Cast-in handle allows crimp head to be mounted in a bench vice
