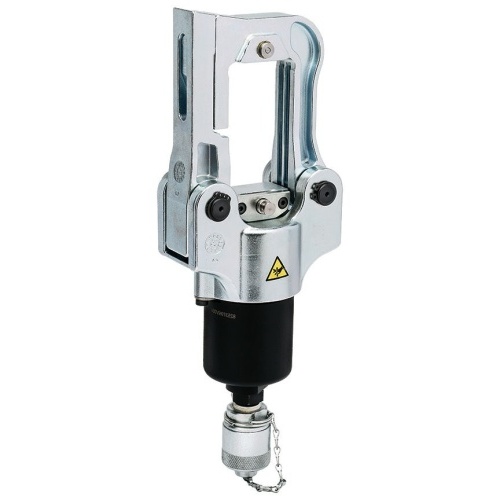

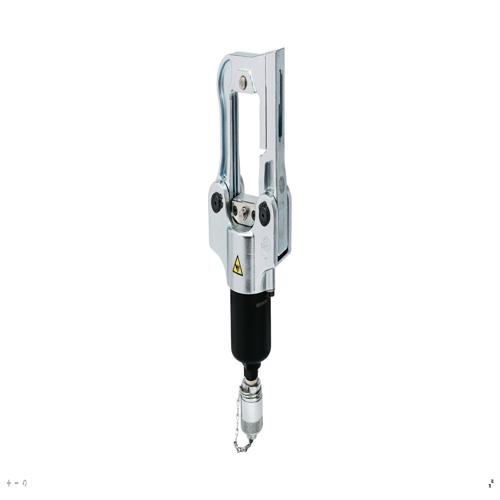

Panduit CT-920CH/CCP Pan-Lug™ CT-920CH/CCP Hydraulic Crimp Head
$2,922$3,506 (-17%)
Panduit CT-920CH/CCP 12-ton 3-in-1 hydraulic, Crimp, Cut & Punch Universal Crimp head. Crimps Panduit copper compression lugs and splices from: 8 AWG – 750 kcmil copper Code, 8 AWG – 535 kcmil copper flex, metric 10 mm2 – 400 mm2 Class 2r and 10mm2 – 300mm2 Class 5f & 6f , 6 AWG – 600 kcmil aluminum wire. Crimps full…
Panduit CT-920CH/CCP 12-ton 3-in-1 hydraulic, Crimp, Cut & Punch Universal Crimp head. Crimps Panduit copper compression lugs and splices from: 8 AWG – 750 kcmil copper Code, 8 AWG – 535 kcmil copper flex, metric 10 mm2 – 400 mm2 Class 2r and 10mm2 – 300mm2 Class 5f & 6f , 6 AWG – 600 kcmil aluminum wire. Crimps full range of Panduit copper CTAPF, CTAP, HTCT taps and direct burial GCE grounding connectors up to 1/0 AWG. Includes tool, and nylon carrying case . Uses panduit CD-920 and CD-930 crimp dies,cutting blades and hole punch adapter, sold separately, Converts to a Dieless tool with UA12ID indentor die adapter. sold seperately. Recommended for use with Panduit CT-902HP hydraulic pump and CT-900HPH 10' hydraulic hose.
Specifications
| Manufacturer | Panduit |
|---|---|
| Sub Brand | Pan-Lug |
| Component | Hydraulic Crimp Head |
Features
Application : Multi-Use Tool, cut and punch
Universal tool design operates using crimp dies, wire and threaded-rod cutting blades and hole punch adapter, sold separately
Incorporates Parker type quick-connect fittings to ease installation and save time
Requires 10,000 psi hydraulic pump system (recommended Panduit CT-902HP pump and accessories)
Durable crimp head design for long life
Universal flip-top head
Uses Panduit CD-920 and CD-930 crimp dies or Panduit UA12ID nest/indenter adapter for dieless crimping
Dies installed using spring loaded die retention pins, no need for tools
