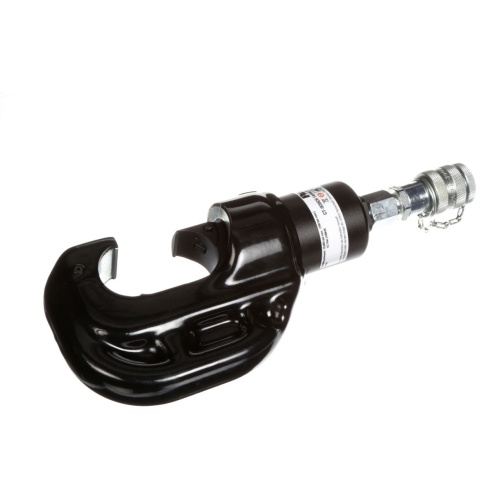

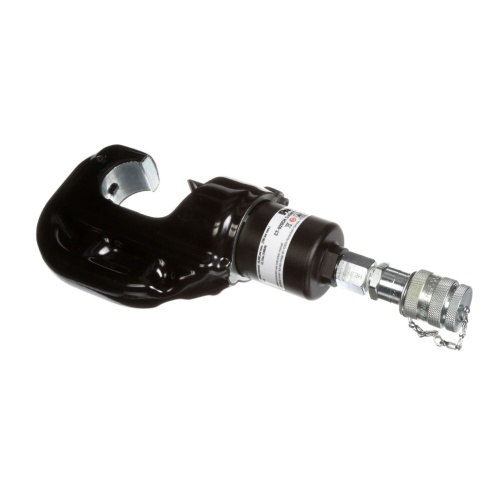

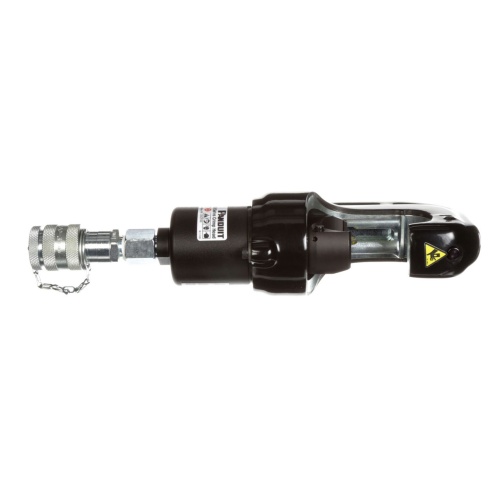

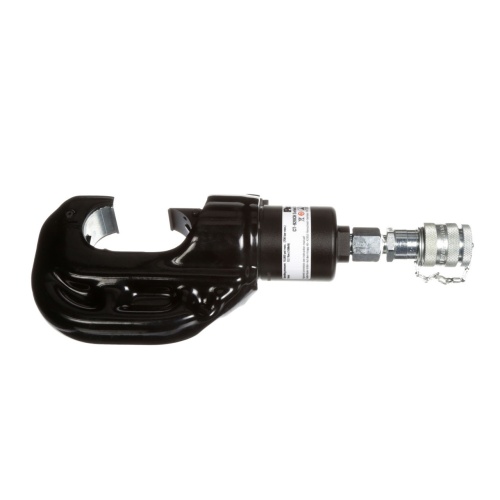

Panduit CT-920CH/CV Pan-Lug™ CT-920CH/CV Hydraulic Crimp Head
$2,221$2,666 (-17%)
Panduit CT-920CH/CV 12-ton hydraulic crimp head. C-head covered with PVC insualtion. Crimps Panduit copper compression lugs and splices from: 8 AWG – 750 kcmil copper Code, 8 AWG – 535 kcmil copper flex, metric 10 mm2 – 400 mm2 Class 2r and 10mm2 – 300mm2 Class 5f & 6f , 6 AWG – 600 kcmil aluminum wire. Crimps full…
Panduit CT-920CH/CV 12-ton hydraulic crimp head. C-head covered with PVC insualtion. Crimps Panduit copper compression lugs and splices from: 8 AWG – 750 kcmil copper Code, 8 AWG – 535 kcmil copper flex, metric 10 mm2 – 400 mm2 Class 2r and 10mm2 – 300mm2 Class 5f & 6f , 6 AWG – 600 kcmil aluminum wire. Crimps full range of Panduit copper CTAPF, CTAP, HTCT taps and direct burial GCE grounding connectors up to 250 kcmil. Includes tool and nylon carrying case . Recommended for use with Panduit CT-902HP hydraulic pump and CT-900HPH 10' hydraulic hose.
Specifications
| Manufacturer | Panduit |
|---|---|
| Sub Brand | Pan-Lug |
| Component | Hydraulic Crimp Head |
Features
Incorporates Parker type quick-connect fittings to ease installation and save time
Requires 10,000 psi hydraulic pump system (recommended Panduit CT-902HP pump and accessories)
Durable crimp head design for long life
Open "C" head design allows for easy loading of crimping dies and connectors, saves time
Uses Panduit CD-920 and CD-930 crimp dies to provide easy matching of crimping die to connector
Dies installed using spring loaded die retention pins, no need for tools
Cast-in handle allows crimp head to be mounted in a bench vice
CT-920CH/CV available with 2-layer PVC covered crimp head. Application : Panduit Copper and Aluminum compression connectors using Panduit Crimping Dies.. For Use With: Panduit Crimp Dies
