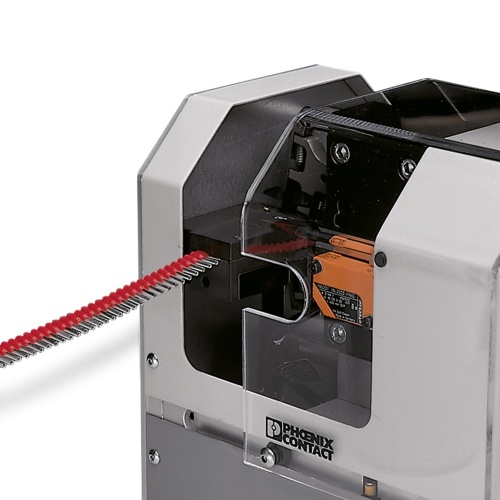

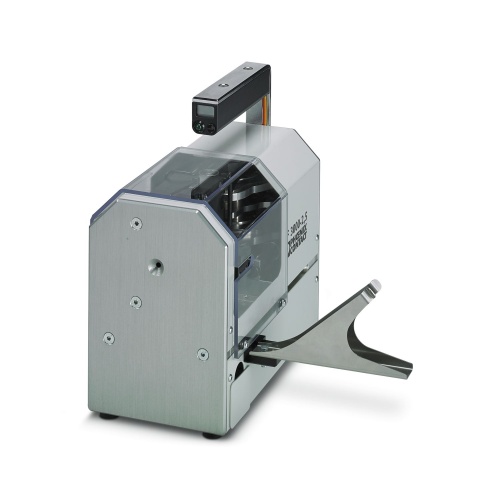

Phoenix Contact 1205516 Crimping tool, electric CF 3000-2,5 120V
$10,101$12,121 (-17%)
Phoenix Contact 1205516 An automatic stripping and crimping device suitable for use with 120V power is available, catering to taped insulated ferrules in sizes ranging from 0.25mm² to 2.5mm², including a conversion kit for the smaller size. The device also comes with sleeve length of 8mm.
Phoenix Contact 1205516 An automatic stripping and crimping device suitable for use with 120V power is available, catering to taped insulated ferrules in sizes ranging from 0.25mm² to 2.5mm², including a conversion kit for the smaller size. The device also comes with sleeve length of 8mm.
Specifications
| Tool Crimping | Trapezoidal |
|---|---|
| Tool Approval | DIN 46228-4: 1990-09 |
| Tool Stripping Length | 11.5 mm |
| Manufacturer | Phoenix Contact |
| Component | Crimping Machine |
| Tool Connector Type | Ferrules |
| Tool Conductor Cross Section | 0.25-2.5 mm² |
Features
The compact automatic stripping and crimping device can be used to process taped ferrules with insulating collars according to DIN 46228‑4
Suitable for class 2 and class 5 PVC conductors (H05V-K/H07V-K).Conductors with special insulating material and stranding can only be processed to a limited degree and with reservations.
The conductor is stripped in a single step and crimped with a ferrule to a high standard of quality
Particularly suitable for pre-assembling conductors
Color coding according to ferrule standard DIN 46228‑4 makes the assignment of modification components really clear
The automatic device can be adapted to various cross sections in under a minute
Thanks to its compact and lightweight design, it can also be used as a portable solution for transport between different work locations
Up to 1200 conductors can be processed an hour
