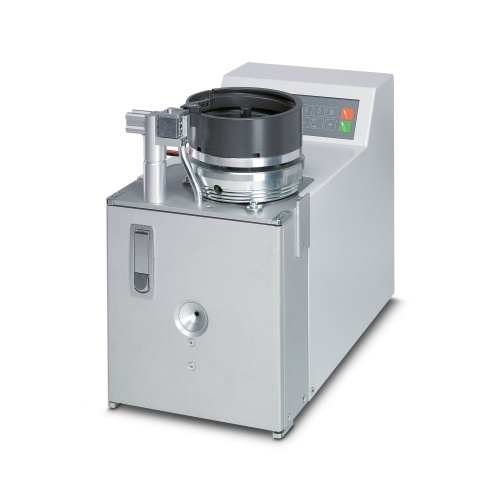

Phoenix Contact 1208199 Crimping tool, electro-pneumatic CF 1000-1,5
$19,763$23,716 (-17%)
Phoenix Contact 1208199 An automatic stripping and crimping device is available with an input voltage range of 100V to 240V, suitable for insulated ferrules with cross-sections between 0.25mm² and 4.0mm², as specified in DIN 46228-4:1990-09, and also includes conversion kits with sleeve lengths from 6mm to 12mm.
Phoenix Contact 1208199 An automatic stripping and crimping device is available with an input voltage range of 100V to 240V, suitable for insulated ferrules with cross-sections between 0.25mm² and 4.0mm², as specified in DIN 46228-4:1990-09, and also includes conversion kits with sleeve lengths from 6mm to 12mm.
Specifications
| Tool Crimping | Trapezoidal |
|---|---|
| Tool Approval | DIN 46228-4: 1990-09 |
| Tool Stripping Length | 14.5 mm |
| Manufacturer | Phoenix Contact |
| Component | Crimping Machine |
| Tool Conductor Cross Section | 0.34-4 mm² |
Features
The automatic stripping and crimping device can be used to process loose ferrules with insulating collars according to DIN 46228‑4

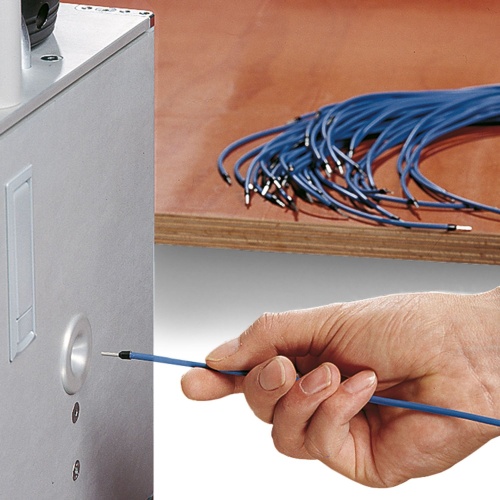

The conductor is stripped in a single step and crimped with a ferrule to a high standard of quality
The pull-out forces meet the requirements of IEC/EN 60999 and IEC/EN 60947
Quantity counter
Quick change of cross section without the need for additional adjustments
Suitable for bulk processing
Up to 1000 conductors can be processed an hour
Rugged design
