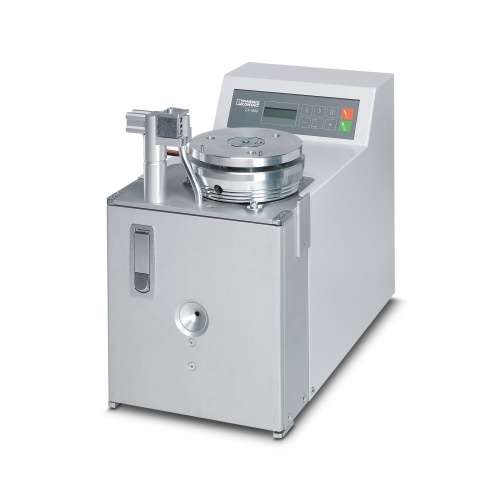

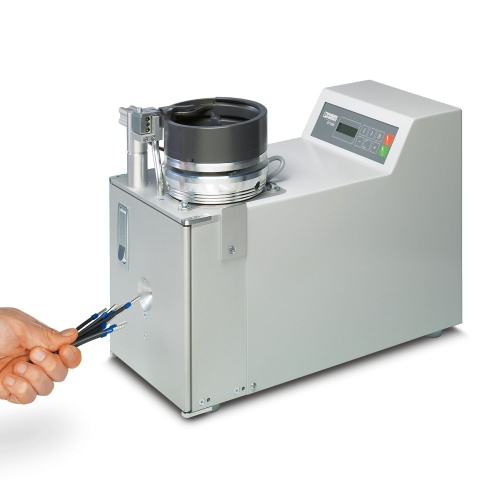

Phoenix Contact 1212456 Crimping tool, electro-pneumatic CF 1000-10
$19,763$23,716 (-17%)
Phoenix Contact 1212456 An automatic stripping and crimping device suitable for use with loose ferrules featuring an insulating collar is available in various sizes of wire insulation, including 4mm², 6mm², and 10mm². This electro-pneumatic device operates within a voltage range of 100V to 240V and does not require a…
Phoenix Contact 1212456 An automatic stripping and crimping device suitable for use with loose ferrules featuring an insulating collar is available in various sizes of wire insulation, including 4mm², 6mm², and 10mm². This electro-pneumatic device operates within a voltage range of 100V to 240V and does not require a conversion kit.
Specifications
| Tool Crimping | Trapezoidal |
|---|---|
| Tool Approval | DIN 46228-4: 1990-09 |
| Tool Stripping Length | 15.5 mm |
| Manufacturer | Phoenix Contact |
| Component | Crimping Machine |
| Tool Conductor Cross Section | 4-10 mm² |
Features
The automatic stripping and crimping device can be used to process loose ferrules with insulating collars according to DIN 46228‑4
Quantity counter
The pull-out forces meet the requirements of IEC/EN 60999 and IEC/EN 60947
The conductor is stripped in a single step and crimped with a ferrule to a high standard of quality
Quick change of cross section without the need for additional adjustments
Up to 1200 conductors can be processed an hour
Suitable for bulk processing
Rugged design
