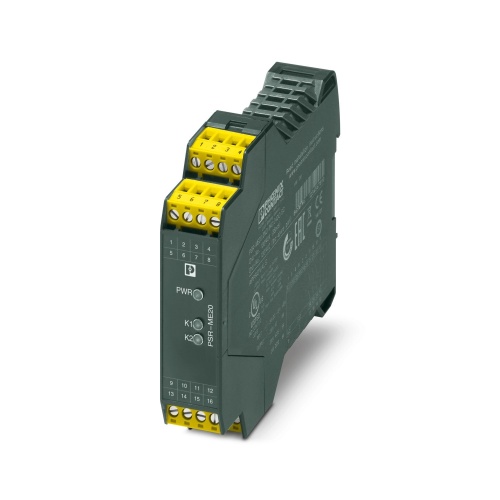

Phoenix Contact 1301404 PSR-ME20-3NO-1NC-24DC Safety Relay
$2,516$3,020 (-17%)
Phoenix Contact PSR-ME20 (1301404) safety relay set — 3 NO / 1 NC outputs, 24 V DC, certified Cat.3 / PL d and SIL 2. Genuine Phoenix Contact modules with fast delivery from Batam across Indonesia and Southeast Asia.
The Phoenix Contact 1301404 PSR-ME20 safety relay set comprises 35 modular safety relays from the PSR‑ME20 series, engineered for machine safety and emergency-stop applications. Each module delivers 3 NO / 1 NC safety outputs, is powered by 24 V DC and is certified to Category 3 / PL d and SIL 2 performance levels. Designed for 1- and 2-channel control with three enabling paths and one signaling path, it supports manual or automatic start monitoring for safety doors, light grids and guarded machinery.
Key Features
- Certified to EN ISO 13849-1 Category 3 / PL d and SIL 2 per EN IEC 62061 / IEC 61508.
- Three enabling current paths plus one signaling current path for enhanced diagnostics.
- Supports 1- and 2-channel control; selectable manual or automatic start monitoring.
- Provides 3 NO and 1 NC safety outputs for reliable safety switching.
- 24 V DC supply via plug-in screw terminal block for secure, quick wiring.
- Supplied as a set of 35 PSR‑ME20 modules for bulk deployments and system builds.
Technical Specifications
| Component | Safety Relay (safety set) |
|---|---|
| Manufacturer | Phoenix Contact |
| Commercial Reference | 1301404 |
| Product | PSR-ME20-3NO-1NC-24DC-SC-SET35 |
| Outputs | 3 NO, 1 NC |
| Supply Voltage | 24 V DC |
| Safety Performance | Category 3 / PL d (EN ISO 13849-1) |
| SIL | SIL 2 (EN IEC 62061 / IEC 61508) |
| Control Channels | 1- and 2-channel |
| Enabling / Signaling Paths | 3 enabling current paths, 1 signaling path |
| Connection | Plug-in screw terminal block |
| Quantity | Set of 35 units |
Applications
Typical uses include emergency-stop circuits, safety doors and interlocks, light curtains/grids and guarded machine stations, and centralized safety modules for packaging, material handling and assembly lines.
All units are genuine Phoenix Contact products sourced through authorized distribution. Wulan Dari (Batam) supplies and ships quickly across Indonesia and Southeast Asia with competitive lead times. Contact us to request a quotation or check availability for part 1301404 PSR‑ME20 safety relay set.
