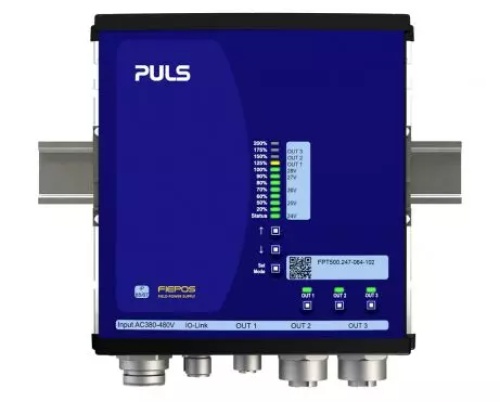

PULS FPT500-247-064-102 FIEPOS IP54-67 Power Supply – 24 VDC, 25 Amp
$1,276
PULS FPT500-247-064-102 – Introducing FIEPOS – PULS' innovative FIEld POwer Supply designed for flexible, modular systems in machine and system engineering. FIEPOS is a decentralized power supply available in IP54, IP65, or IP67 protection classes, offering easy installation and meeting diverse requirements of modular…
PULS FPT500-247-064-102 – Introducing FIEPOS – PULS' innovative FIEld POwer Supply designed for flexible, modular systems in machine and system engineering. FIEPOS is a decentralized power supply available in IP54, IP65, or IP67 protection classes, offering easy installation and meeting diverse requirements of modular factory automation. Enjoy cost, time, and space savings as FIEPOS eliminates the need for centralized control cabinets and allows installation outside of the cabinet directly on the machine. With a user-friendly LED interface and push buttons, or remote monitoring via IO-Link, managing output voltage and current becomes effortless. The compact housing and current-limited outputs enable the use of shorter cables and smaller cross-sections, reducing copper costs and installation efforts. Moreover, FIEPOS eliminates the need for separate protection modules, saving valuable space in the system and warehouse. Embrace the future of power supply with FIEPOS, the ultimate solution for flexible and efficient industrial applications.
Specifications
| Power Supply Mounting | Din Rail Mount |
|---|---|
| Power Supply Voltage Output | 24 VDC |
| Power Supply Voltage Input | 480 VAC |
| Power Supply Connection Type | Screw Connection |
| Component | Power Supply |
| Manufacturer | PULS |
| Line | FIEPOS |
| Power Supply Amperage Output Range | 25 Amp |
| Power Supply Watts | 600 Watts |
Features
IP 65/67 Degree of protection
1000 Wpeak 5 s
3 AC 380-480 V wide-range input
1 NEC Class II output
2 switchable outputs
Outputs for actors and sensors shares one channel
95.6 % full load and excellent partial load efficiencies
DIN rail mounting possible, option “D”
Output connected to PE (PELV)
Version without connection to PE on request
Large output capacitors
Not potted
Negligible low input inrush current surge
Full power up to +45 °C
IO-Link
Input: 7/8”d / Output: 1x M12-A
2x 7/8” – 5pin
