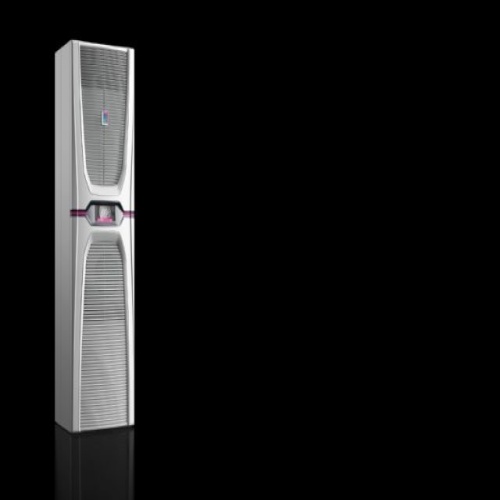

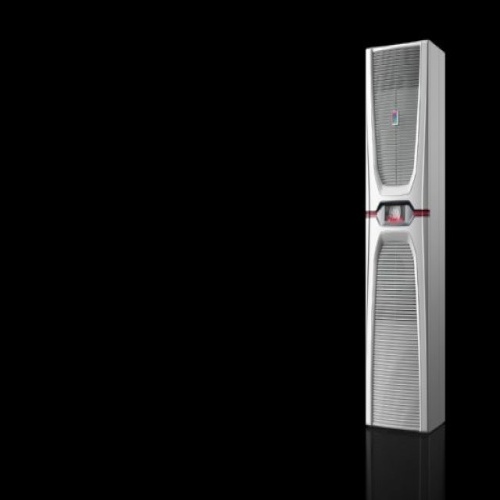

Rittal 3189945 Wall-mounted cooling unit Blue e+ Chemical 1.6 – 5.8 kW
$10,389$12,467 (-17%)
Rittal 3189945 – Energy-efficient wall-mounted Blue e+ chemical cooling units in the 1600 W to 5800 W power classes. Thanks to a special paint finish on the components, they offer optimum protection for contaminated environments – especially in applications where sulfuric acid may be present as an aerosol in the air.…
Rittal 3189945 – Energy-efficient wall-mounted Blue e+ chemical cooling units in the 1600 W to 5800 W power classes. Thanks to a special paint finish on the components, they offer optimum protection for contaminated environments – especially in applications where sulfuric acid may be present as an aerosol in the air. Includes: Condenser with hydrophobic RiNano coating, Integral electric condensate evaporation, Assembly components, Wired ready for connection (plug, in terminal strip)
Specifications
| Manufacturer | Rittal |
|---|---|
| AC Voltage | 480 VAC |
| Component | Cooling Unit |
| AC Composition | Carbon Steel |
Features
Supply Includes: Condenser with hydrophobic RiNano coating Integral electric condensate evaporation Assembly parts Fully wired ready for connection (plug-in terminal strip)
Benefits: Average 75% energy savings thanks to speed-regulated components and heat pipe technology Suitable for international use thanks to its unique multi-voltage capability (without rewiring) and high operating limits Longer service life of the components inside the enclosure and the cooling unit due to component-friendly cooling Intuitive operation due to touch display and intelligent interfaces
Note: Please observe the mounting instructions. By downloading the software, a contract is concluded between the contractual partner and Rittal for the free use of the software in accordance with these licence conditions. Only suitable for use in semi-outdoor areas (see instructions for description)
Design: wall-mounted
Application: Applications where the air may contain sulphuric acid aerosols (e.g. paper industry, food industry, chemical industry, electroplating and offshore operations)
Option: For remote monitoring and networking of cooling units and chillers in the Blue e+ generation, please use the IoT interface (Model No. 3124.300). Increase machine availability and process reliability with remote monitoring of device data, statuses and system messages.
