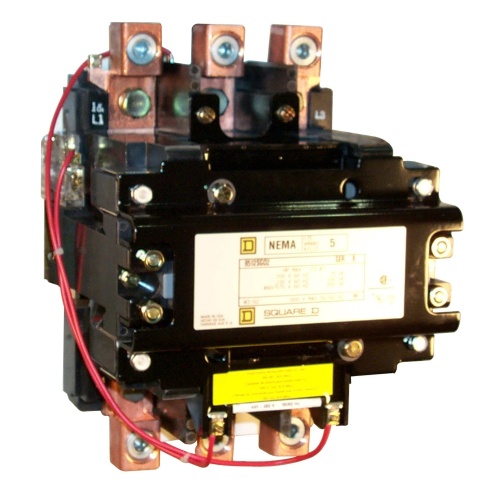

Schneider 8502SGO2V08 Type S 270A 3P NEMA Contactor, 208V Coil
$5,392$6,470 (-17%)
Schneider Electric 8502SGO2V08 Type S NEMA contactor — Size 5, 270 A, 3‑pole with 208 VAC coil. Genuine Schneider product supplied from Batam with fast delivery across Indonesia and Southeast Asia. Request a quotation today.
Schneider Electric 8502SGO2V08 is a Type S NEMA contactor (non‑reversing) — a Size 5, 3‑pole device rated 270 A with a 208 VAC, 60 Hz coil. Built for heavy motor control and power switching, this open-frame contactor is suitable for switching motors, industrial heaters, capacitor banks and transformers, offering a robust solution for HVAC, pump/compressor starters and general industrial power distribution.
Key Features
- NEMA Type S, Size 5 non-reversing magnetic contactor rated 270 A, 3 poles.
- 208 VAC, 60 Hz coil wired for common control; coils are replaceable and available in multiple voltages.
- High short-circuit current rating — up to 100 kA SCCR when protected by an appropriate breaker or fuse.
- UL listed and CSA certified for industrial use.
- Open-frame design for panel mounting; compact physical footprint with standard accessory support.
- Designed for switching motors, heating loads, capacitors and transformers where overload protection is provided separately.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Commercial Reference | 8502SGO2V08 |
| Starter Type | Type S NEMA contactor (non-reversing) |
| NEMA Size | Size 5 |
| Starter Amperage | 270 Amp |
| Starter Poles | 3 Pole |
| Starter Coil Voltage | 208 VAC, 60 Hz (common control) |
| Rated Horsepower | 75 HP at 200 VAC; 100 HP at 230 VAC; 200 HP at 460 and 575 VAC |
| Short-Circuit Current Rating (SCCR) | Up to 100 kA when protected by appropriate breaker or fuse (per UL508A) |
| Certifications | UL listed, CSA certified |
| Enclosure | Open (no enclosure) |
| Dimensions (H×W×D) | 12.31 in × 8.67 in × 8.75 in |
Applications
Typical uses include motor starters for pumps and compressors, HVAC and chiller motor control, switching of industrial heaters and furnaces, and control of capacitor banks or transformers in power distribution panels.
We supply genuine Schneider Electric products through authorized channels from our Batam base, with fast delivery across Indonesia and Southeast Asia. Competitive pricing and local support available — contact us to request a quotation or check stock and delivery lead time.
