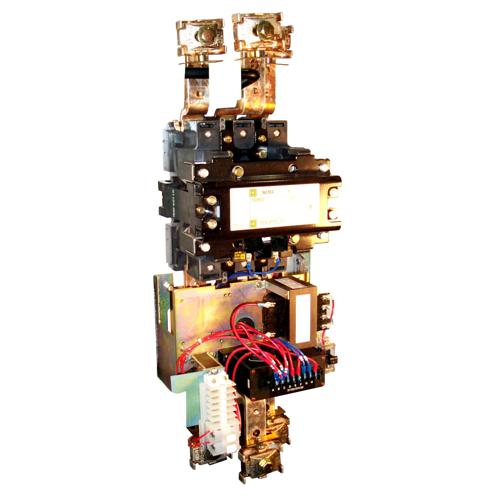

Schneider 8502SHO2V03 NEMA Size 6 Contactor, 540A, 240V Coil, 3P
$14,195$17,034 (-17%)
Schneider Electric 8502SHO2V03 NEMA Type S contactor, Size 6, 540 A, 3-pole with 220/240 VAC coil — genuine Schneider Electric part with fast delivery from Batam across Indonesia and Southeast Asia via authorized distribution.
Schneider Electric 8502SHO2V03 is a NEMA Type S contactor (open style) in a Size 6 frame, rated 540 A, 3-pole with a 220/240 VAC 50/60 Hz AC coil. It is built for heavy motor control and industrial load switching, suitable for NEMA contactor motor starters, MCC installations and high-horsepower applications, and for retrofit into existing starter panels. Typical uses include pumping, compressor and large motor switching.
Key Features
- NEMA Size 6 frame rated for heavy-duty switching — specified at 540 A load rating.
- Three-pole, non-reversing configuration for straightforward single-motor control installations.
- 220/240 VAC coil compatible with 50/60 Hz control circuits (AC coil design).
- Open-style frame for panel or starter assembly mounting in motor control centers.
- High HP switching capability: 150 HP @ 200 V; 200 HP @ 230 V; 400 HP @ 460 / 575 V.
- Supplied without auxiliary contacts — auxiliary blocks can be added externally if needed.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Commercial Reference | 8502SHO2V03 |
| Component | NEMA Contactor (Type S) |
| NEMA Size | 6 |
| Amperage | 540 Amp |
| Poles | 3 Pole |
| Coil Voltage | 220/240 VAC |
| Frequency | 50/60 Hz |
| Enclosure Type | Open |
| Action | Non-Reversing |
| Auxiliary Contacts | Without |
| Motor HP Ratings | 150 HP @ 200 VAC; 200 HP @ 230 VAC; 400 HP @ 460 VAC and 575 VAC |
Applications
Used for large motor starters in pumps and compressors, HVAC and chiller plants, conveyor and processing lines, genset motor control, and motor control centers in manufacturing, water treatment and utility installations.
We supply genuine Schneider Electric products through authorized distribution channels. Wulan Dari ships from Batam with fast delivery across Indonesia and Southeast Asia. Contact us for competitive pricing, lead times and flexible shipping options and reliable supply — request a formal quotation or check stock availability today.
