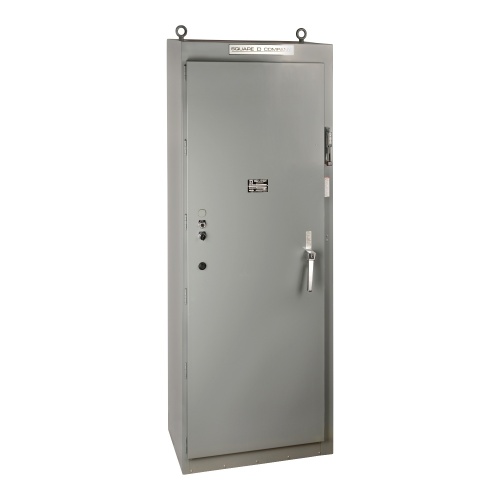

Schneider 8940RG3QV06 Reduced Voltage Pump Panel, 480V, NEMA 3R
$59,551
Contactor, Type L, multipole lighting, electrically held, 30A, 6 pole, 600 V, 277 VAC 60 Hz coil, NEMA 3R/12, +option
Contactor, Type L, multipole lighting, electrically held, 30A, 6 pole, 600 V, 277 VAC 60 Hz coil, NEMA 3R/12, +option
Specifications
| Starter NEMA Size | 6 |
|---|---|
| Starter Coil Voltage | 480 VAC |
| Starter Enclosure Type | NEMA 3R |
| Starter Poles | 3 Pole |
| Starter HP | 200 HP @ 480 VAC 3 Phase |
| Starter Coil Voltage | 440 VAC |
| Starter Actions | Motor Logic Solid State |
| Manufacturer | Schneider Electric |
| Starter Amperage | 270 Amp |
| Starter Actions | Fusible Disconnect Switch |
Features
Designed for irrigation or oil field applications
Approved for submersible pump applications
Ambient temperature compensated
Includes a Start push button and a Hand-Off-Auto selector switch
Adjustable trip current
