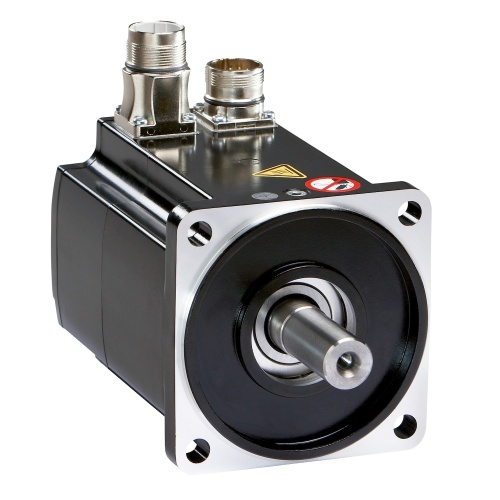

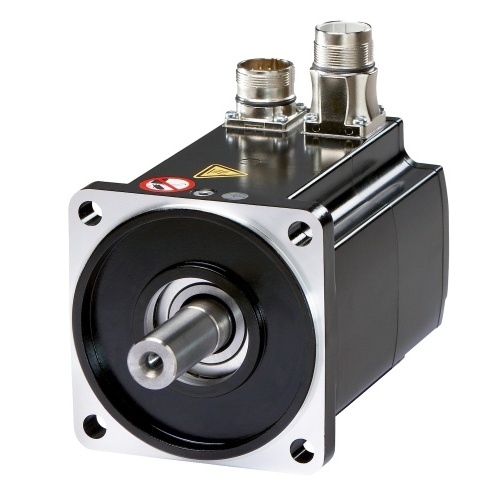

Schneider BMH2053P21F1A Servo Motor, 3800 RPM Max, 480V, 3-Phase
$11,225$13,470 (-17%)
Schneider Electric BMH2053P21F1A is a three-phase servo motor with a maximum mechanical speed of 3800 rpm and a maximum axial force of 4500 N. It features straight connectors for electrical connection and natural convection cooling. With a shaft diameter of 1.50 in and a length of 21.20 in, it has a holding brake and…
Schneider Electric BMH2053P21F1A is a three-phase servo motor with a maximum mechanical speed of 3800 rpm and a maximum axial force of 4500 N. It features straight connectors for electrical connection and natural convection cooling. With a shaft diameter of 1.50 in and a length of 21.20 in, it has a holding brake and a smooth shaft end. The motor has a peak stall torque of 2053.37 lbf.in, a nominal power of 6500 W, and a net weight of 158.51 lb. It has an IP65 degree of protection and is compatible with the Lexium 32 range.
Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Motor Voltage | 400 Volt |
| Motor Voltage | 480 Volt |
| Motor RPM's | 3800 RPM |
| Motor Amperage (Full Load) | 107.4 Amp |
| Motor Voltage Phases | Three Phase |
| Motor Watts | 9.6 Watts |
Features
Three book-size servo drive models and two servo motor families plus a full range of intelligent options.
Lexium 32 simplifies all aspects of the machine lifecycle from engineering to maintenance.
A speed bandwidth of 1,600 Hz provides an outstanding response.
With a power density of 548 W/l Lexium 32 packs maximum power into minimum volume.
This saves on cabinet space and size, reduces the machine footprint and decreases costs.
Powerful integration software simplifies the entire process from planning to commissioning.
The new Autotuning function makes tuning easier than ever before.
Lexium 32 offers a host of features for rapid installation and maintenance e. g. removable, color-coded connectors.
SoMove software for configuring on PC and transferring the configuration via Bluetooth® or using a cable.
Lexium 32 supports a wide selection of interfaces for fast integration into architectures
Communication boards, encoder options and accessories adapt your Lexium 32 solution
Leverage the full power of existing assets such as applications or legacy motors.
"Safe Torque Off" on board (IEC/EN 61800-5-2) for shorter downtimes and less wiring.
The optional enhanced safety module eSM frees you from the hassle of devising complex, proprietary safety concepts. Access to SS1, SS2, SOS and SLS safety functions (IEC/EN 61800-5-2).
