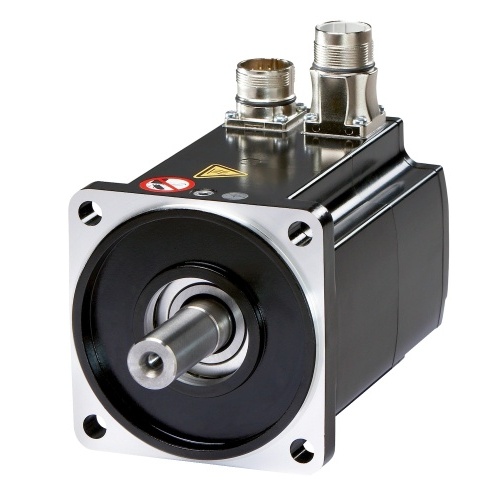

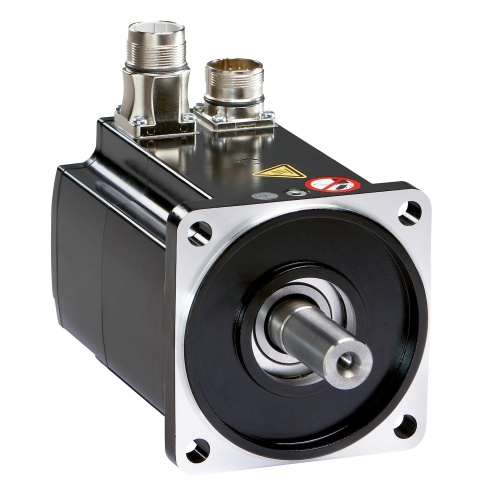

Schneider BMH2053P21F2A Servo Motor, 3800 RPM Max, 480V, 3-Phase
$11,323$13,587 (-17%)
Schneider Electric BMH2053P21F2A is a three-phase servo motor with a maximum mechanical speed of 3800 rpm. It has a shaft diameter of 1.50 inches and a length of 21.20 inches. The motor is equipped with a holding brake and has a maximum radial force of 4500 N. With a continuous stall torque of 743.46 lbf.in, this…
Schneider Electric BMH2053P21F2A is a three-phase servo motor with a maximum mechanical speed of 3800 rpm. It has a shaft diameter of 1.50 inches and a length of 21.20 inches. The motor is equipped with a holding brake and has a maximum radial force of 4500 N. With a continuous stall torque of 743.46 lbf.in, this motor is suitable for a variety of applications. It has an IP65 standard degree of protection and weighs 158.51 lbs.
Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Motor Amperage (Full Load) | 9.6 Amp |
| Motor Voltage | 208 Volt |
| Motor Voltage | 400 Volt |
| Motor Voltage | 480 Volt |
| Motor RPM's | 8000 RPM |
| Motor Voltage Phases | Three Phase |
Features
Three book-size servo drive models and two servo motor families plus a full range of intelligent options.
Lexium 32 simplifies all aspects of the machine lifecycle from engineering to maintenance.
A speed bandwidth of 1,600 Hz provides an outstanding response.
With a power density of 548 W/l Lexium 32 packs maximum power into minimum volume.
This saves on cabinet space and size, reduces the machine footprint and decreases costs.
Powerful integration software simplifies the entire process from planning to commissioning.
The new Autotuning function makes tuning easier than ever before.
Lexium 32 offers a host of features for rapid installation and maintenance e. g. removable, color-coded connectors.
SoMove software for configuring on PC and transferring the configuration via Bluetooth® or using a cable.
Lexium 32 supports a wide selection of interfaces for fast integration into architectures
Communication boards, encoder options and accessories adapt your Lexium 32 solution
Leverage the full power of existing assets such as applications or legacy motors.
"Safe Torque Off" on board (IEC/EN 61800-5-2) for shorter downtimes and less wiring.
The optional enhanced safety module eSM frees you from the hassle of devising complex, proprietary safety concepts. Access to SS1, SS2, SOS and SLS safety functions (IEC/EN 61800-5-2).
