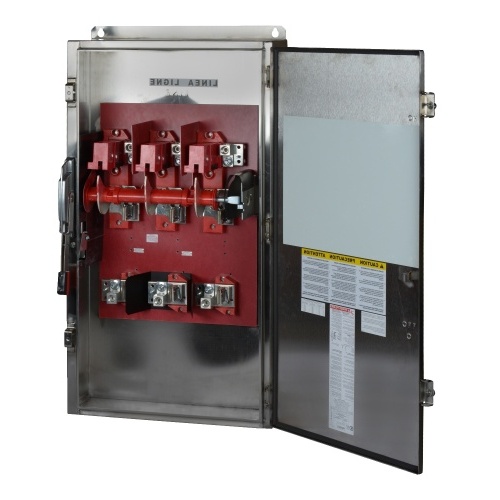

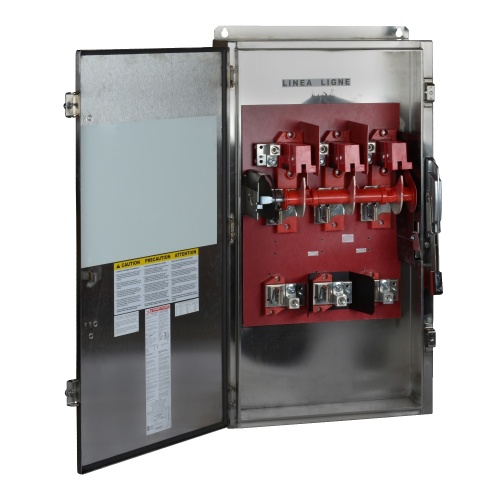

Schneider Electric H226NDS Safety switch, heavy duty, fusible, 600A, 2 poles, 200 hp, 240 VAC/250 VDC, NEMA 4, 4X, 5, 304 steel, neutral
$19,774
Safety switch, heavy duty, fusible, 600A, 2 poles, 200 hp, 240 VAC/250 VDC, NEMA 4, 4X, 5, 304 steel, neutral
Safety switch, heavy duty, fusible, 600A, 2 poles, 200 hp, 240 VAC/250 VDC, NEMA 4, 4X, 5, 304 steel, neutral
Specifications
| Enclosure Environment Rating | Outdoor-Indoor |
|---|---|
| Enclosure Composition | Stainless Steel |
| Enclosure Disconnect Type | Fusible Disconnect Switch |
| Enclosure Mount Type-Pushbutton Holes | Surface |
| Enclosure Disconnect Type | Single Throw Safety Switch |
| Enclosure NEMA Rating | NEMA 4 |
| Enclosure NEMA Rating | NEMA 4X |
| Enclosure NEMA Rating | NEMA 5 |
| Manufacturer | Schneider Electric |
| Component | Fusible Disconnect Switch |
| Sub Component | Single Throw Safety Switch |
| Disconnect Enclosure Depth | 10.13" |
| Disconnect Enclosure Width | 26.25" |
| Disconnect Enclosure Height | 46.25" |
Features
Fusible and Non-Fusible options
Poles: 2 or 3 fusible switched poles (with our without ground able solid neutral)
4 or 6 fusible switched poles (grounded, solid neutral)
Rated Voltage: 240Vac/250Vdc or 600Vac/600Vdc
Rated Amperage: 30 – 1200A
Enclosures: Type 1, Type 3R, Type 12, Type 4X Stainless Steel
Rated Horsepower: 500hp maximum
Short Circuit Current Rating: Up to 200 kA utilizing appropriate Class R and Class R Fuse kits, or Class L, or Class J fuses
Seismically Qualified to: 2010 ASCE 7, 2012 International Building Code (IBC), 2013 California Building Code (CBC)
