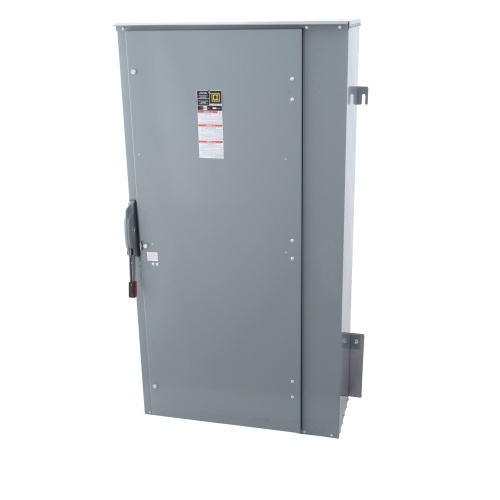

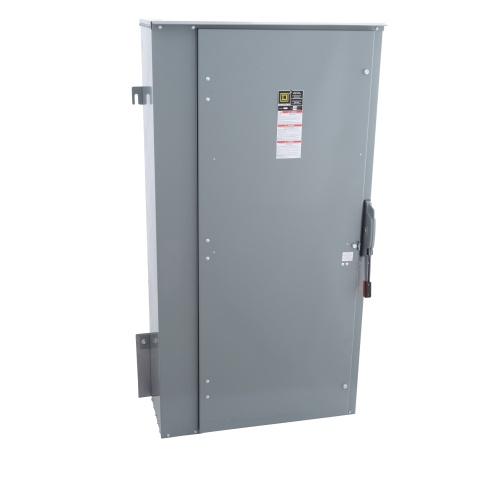

Schneider Electric H228AWK Safety switch, heavy duty, fusible, 1200A, 2 poles, 50 hp, 240 VAC/250 VDC, NEMA 12
$17,296$20,756 (-17%)
Safety switch, heavy duty, fusible, 1200A, 2 poles, 50 hp, 240 VAC/250 VDC, NEMA 12
Safety switch, heavy duty, fusible, 1200A, 2 poles, 50 hp, 240 VAC/250 VDC, NEMA 12
Specifications
| Enclosure Disconnect Type | Fusible Disconnect Switch |
|---|---|
| Enclosure Mount Type-Pushbutton Holes | Surface |
| Enclosure Disconnect Type | Single Throw Safety Switch |
| Enclosure NEMA Rating | NEMA 3R |
| Enclosure NEMA Rating | NEMA 12 |
| Enclosure Composition | Galvannealed Steel |
| Manufacturer | Schneider Electric |
| Component | Fusible Disconnect Switch |
| Sub Component | Single Throw Safety Switch |
| Enclosure Environment Rating | Indoor |
| Disconnect Enclosure Height | 69.13" |
| Disconnect Enclosure Width | 36.62" |
| Disconnect Enclosure Depth | 17.75" |
Features
The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions
Heavy Duty Safety Switches are utized from commercial and institutional to industrial and manufacturing facilities
F Series safety switches provide significantly higher levels of mechanical endurance than NEMA Type KS-1 or UL98 standards require
The design life of a F-Series switch is a minimum of three times the NEMA requirement
An abundance of copper is used in the heaviest current carrying power paths of all Square D by Schneider Electric Heavy Duty Safety Switches
The more copper for current carrying paths, the lower the temperature rise
Managing temperatures inside the switch is the key to providing greater service life
This heavy duty Single Throw Safety Switch has a rated current of 1200A and has a NEMA 3R/12 degree of protection
This fusible disconnect has a short circuit rating of 200kA@240VAC
This safety switch has a galvannealed steel enclosure and is surface mounted
This product is compatable with L, fuses
The acceptable AWG gauge for this product is AWG 3/0 / 750 kcmil, copper or aluminiumand has a tightening torque of 375-375 lbf in
This product complys to UL listed file E2875 standards and comes with an 18 month warranty
Dimensions for this product are 69.13 in (H), 36.62 in (W), 17.75 in (D).
