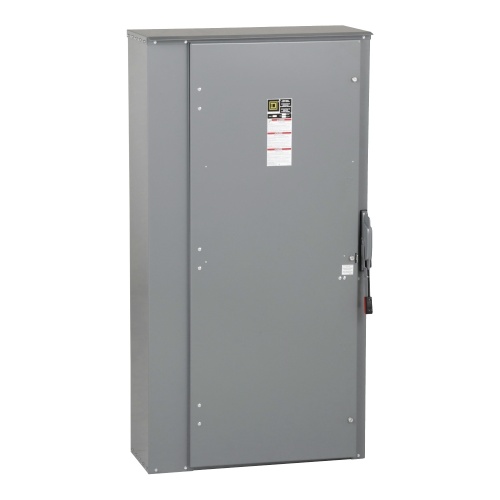

Schneider Electric H327NR Safety switch, heavy duty, fusible, 800A, 3 poles, 250 hp, 240 VAC/250 VDC, NEMA 3R, neutral factory installed
$12,165$14,598 (-17%)
Safety switch, heavy duty, fusible, 800A, 3 poles, 250 hp, 240 VAC/250 VDC, NEMA 3R, neutral factory installed
Safety switch, heavy duty, fusible, 800A, 3 poles, 250 hp, 240 VAC/250 VDC, NEMA 3R, neutral factory installed
Specifications
| Enclosure Disconnect Type | Fusible Disconnect Switch |
|---|---|
| Enclosure Mount Type-Pushbutton Holes | Surface |
| Enclosure Disconnect Type | Single Throw Safety Switch |
| Enclosure NEMA Rating | NEMA 3R |
| Enclosure Composition | Galvannealed Steel |
| Manufacturer | Schneider Electric |
| Component | Fusible Disconnect Switch |
| Sub Component | Single Throw Safety Switch |
| Enclosure Environment Rating | Indoor |

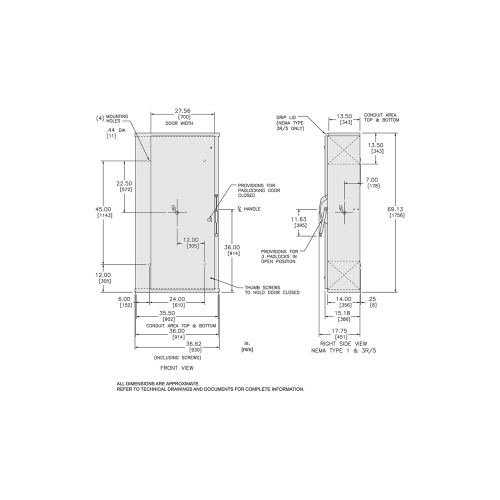

| Disconnect Enclosure Height | 69.13" |
| Disconnect Enclosure Width | 36.62" |
| Disconnect Enclosure Depth | 17.75" |
Features
Heavy duty fusible 800A, 240VAC/250VDC safety switch
Type 3R enclosure for rainproof applications
Suitable for service entrance when equipped with neutral assembly or equipment grounding kit
