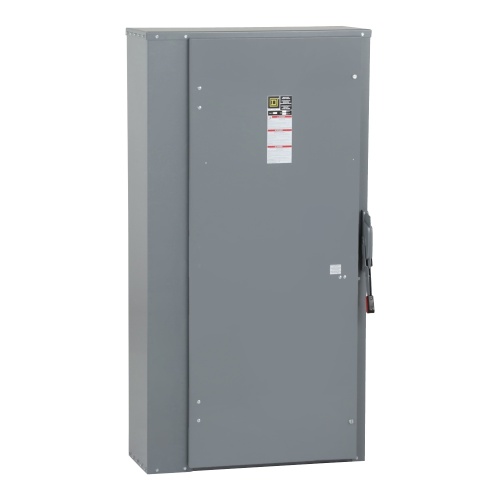

Schneider Electric H328N Safety switch, heavy duty, fusible, 1200A, 3 poles, 250 hp, 240 VAC/250 VDC, neutral factory installed, NEMA1
$11,970$14,365 (-17%)
Safety switch, heavy duty, fusible, 1200A, 3 poles, 250 hp, 240 VAC/250 VDC, neutral factory installed, NEMA1
Safety switch, heavy duty, fusible, 1200A, 3 poles, 250 hp, 240 VAC/250 VDC, neutral factory installed, NEMA1
Specifications
| Enclosure Disconnect Type | Fusible Disconnect Switch |
|---|---|
| Enclosure Mount Type-Pushbutton Holes | Surface |
| Enclosure Disconnect Type | Single Throw Safety Switch |
| Enclosure NEMA Rating | NEMA 1 |
| Manufacturer | Schneider Electric |
| Component | Fusible Disconnect Switch |
| Sub Component | Single Throw Safety Switch |
| Enclosure Environment Rating | Indoor |
| Enclosure Composition | Steel |

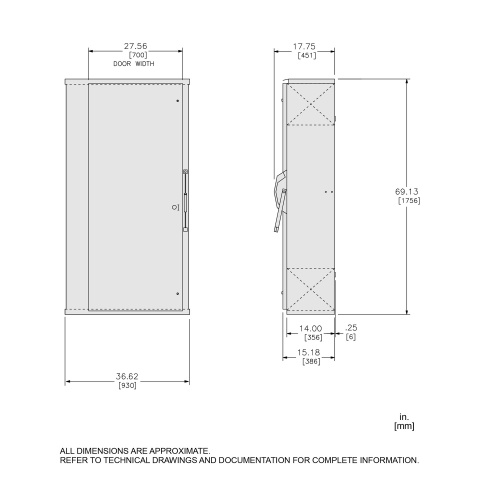

| Disconnect Enclosure Height | 69.13" |
| Disconnect Enclosure Width | 36.62" |
| Disconnect Enclosure Depth | 17.75" |
Features
Heavy duty switches isolate power in daily activities and provide an effective way to interrupt power in an emergency
Designed to satisfy individual requirements for all customers
All feature a quick-make, quick-break operating mechanism, a dual cover interlock
