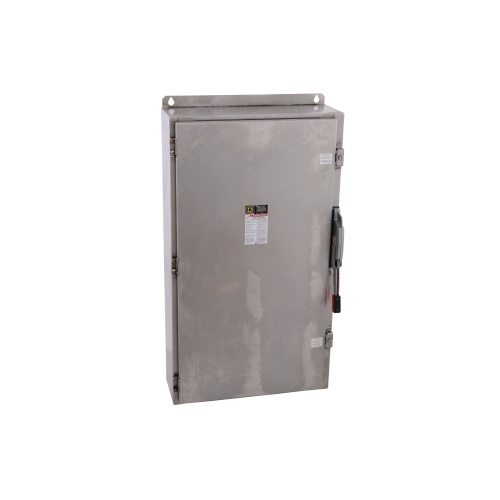

Schneider Electric H365SS Safety switch, heavy duty, fusible, 400A, 3 poles, 250 hp, 600 VAC/600 NDC, NEMA 4, 4X, 5, 316 steel,
$14,453
Safety switch, heavy duty, fusible, 400A, 3 poles, 250 hp, 600 VAC/600 NDC, NEMA 4, 4X, 5, 316 steel,
Safety switch, heavy duty, fusible, 400A, 3 poles, 250 hp, 600 VAC/600 NDC, NEMA 4, 4X, 5, 316 steel,
Specifications
| Enclosure Environment Rating | Outdoor-Indoor |
|---|---|
| Enclosure Composition | Stainless Steel |
| Enclosure Disconnect Type | Fusible Disconnect Switch |
| Enclosure Mount Type-Pushbutton Holes | Surface |
| Enclosure Disconnect Type | Single Throw Safety Switch |
| Enclosure NEMA Rating | NEMA 4 |
| Enclosure NEMA Rating | NEMA 4X |
| Enclosure NEMA Rating | NEMA 5 |
| Manufacturer | Schneider Electric |
| Component | Fusible Disconnect Switch |
| Sub Component | Single Throw Safety Switch |

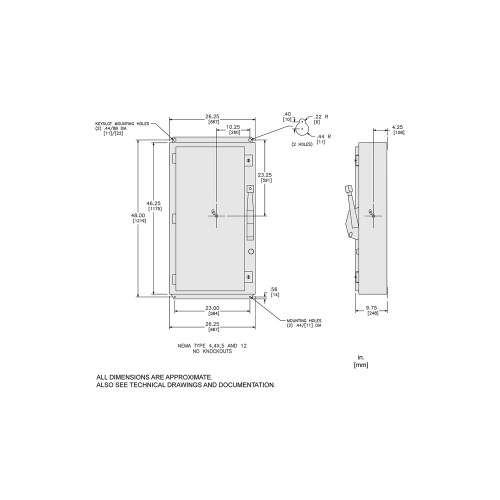

| Disconnect Enclosure Width | 26.25" |
| Disconnect Enclosure Height | 48" |
| Disconnect Enclosure Depth | 9.75" |
Features
Heavy duty switches isolate power in daily activities and provide an effective way to interrupt power in an emergency
Designed to satisfy individual requirements for all customers
All feature a quick-make, quick-break operating mechanism, a dual cover interlock
