Schneider Electric H366AWKVW Safety switch, heavy duty, fusible, 600A, 3 poles, 500 hp, 600 VAC/DC, NEMA 12, viewing window
$12,038$14,445 (-17%)
Safety switch, heavy duty, fusible, 600A, 3 poles, 500 hp, 600 VAC/DC, NEMA 12, viewing window
Safety switch, heavy duty, fusible, 600A, 3 poles, 500 hp, 600 VAC/DC, NEMA 12, viewing window
Specifications
| Enclosure Disconnect Type | Fusible Disconnect Switch |
|---|---|
| Enclosure Mount Type-Pushbutton Holes | Surface |
| Enclosure Disconnect Type | Single Throw Safety Switch |
| Enclosure NEMA Rating | NEMA 3R |
| Enclosure NEMA Rating | NEMA 12 |
| Manufacturer | Schneider Electric |
| Component | Fusible Disconnect Switch |
| Sub Component | Single Throw Safety Switch |
| Enclosure Environment Rating | Indoor |

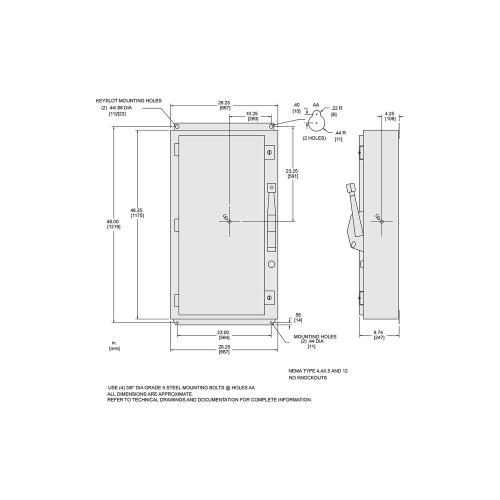

| Disconnect Enclosure Depth | 10.13" |
| Disconnect Enclosure Width | 26.25" |
| Disconnect Enclosure Height | 46.25" |
Features
Heavy duty switches isolate power in daily activities and provide an effective way to interrupt power in an emergency
Designed to satisfy individual requirements for all customers
Suitable for service entrance when equipped with neutral assembly or equipment grounding kit
All feature a quick-make, quick-break operating mechanism, a dual cover
Designed to have a mechanical endurance three times greater than NEMA standards
