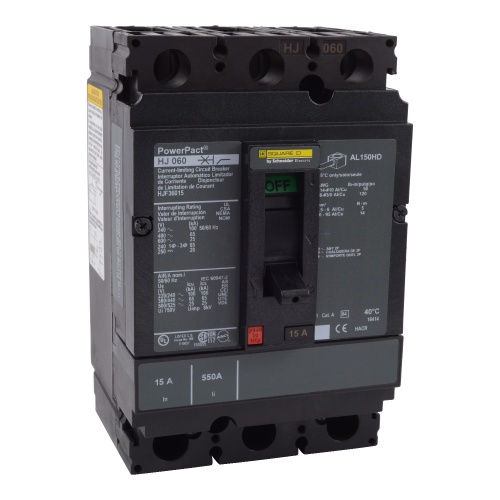

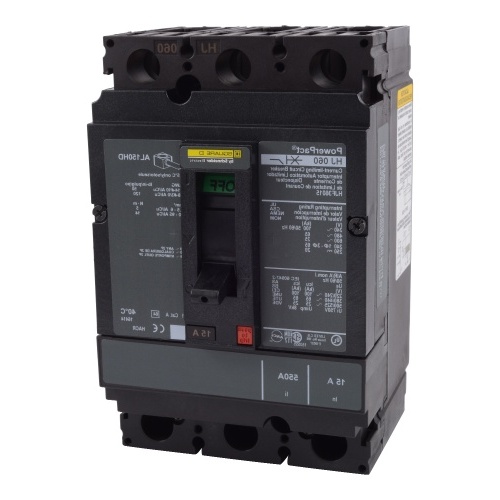

Schneider Electric HJF36150CU31X Circuit breaker, PowerPacT H, Micrologic 3.2, unit mount,

Available in 2-3 pole design

Available from 15-150A at up to 600 Vac and 250 Vdc

Interrupting ratings (AIR) include D-18 kA, G-35 kA, J-65 kA and L-100 kA at 480 Vac and 20 kA at 250 Vdc

Available in standard (80%) or 100% rating

Common mounting holes, handle locations, and trim dimensions across the range allow design standardization using PowerPact H- and J-frame circuit breakers

Available with field-interchangeable trip units

Common accessories across the range of PowerPact Molded Case Circuit Breakers allow users to make late specification changes

A wide range of field-installable accessories allows customers to reduce inventory without sacrificing flexibility

Broad offering of operating mechanisms and ratings specifically designed to be used as the main panel disconnect for control panel applications:

IEC Style Rotary Operating Handles

NEMA 9421 Door Mounted Rotary Operating Mechanism

NEMA 9422 Flange Mounted Operating Mechanism in two styles – bracket mounted or cable operated

Equipped with a unique snap-in terminal design that makes converting between busbar and lug options easy

Easy to install, extremely versatile, a wide variety of terminal options include mechanical lugs, crimp lugs, power distribution lugs, and lug shields

Available in Unit mount (lug-lug, rear, bus bar), I-line or Drawout constructions

2-3 pole automatic molded case switches available at 150A

UL 489 Listed, CSA, NEMA, NMX, VDE, BS, CCC, IEC certified, and CE marked for global acceptance
