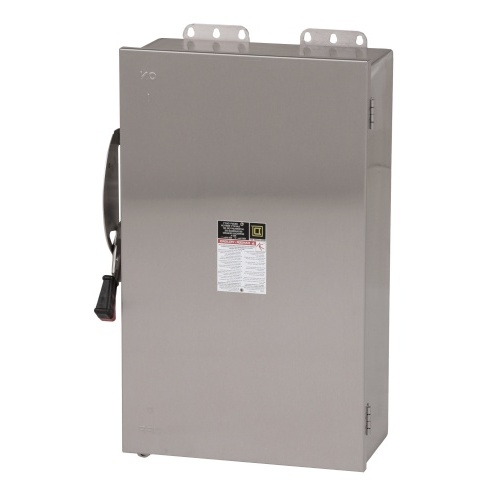

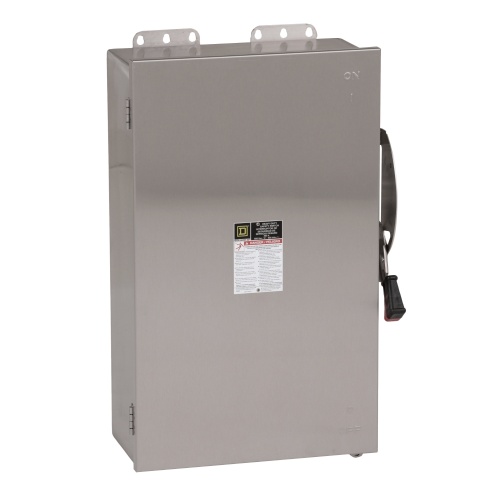

Schneider Electric HU664DS Safety switch, heavy duty, non fusible, 200A, 6 poles, 150 hp, 600 VAC/DC, NEMA 4, 4X, 5, 304 steel
$22,134$26,560 (-17%)
Safety switch, heavy duty, non fusible, 200A, 6 poles, 150 hp, 600 VAC/DC, NEMA 4, 4X, 5, 304 steel
Safety switch, heavy duty, non fusible, 200A, 6 poles, 150 hp, 600 VAC/DC, NEMA 4, 4X, 5, 304 steel
Specifications
| Enclosure Environment Rating | Outdoor-Indoor |
|---|---|
| Enclosure Composition | Stainless Steel |
| Enclosure Disconnect Type | Non-Fusible Disconnect Switch |
| Enclosure Mount Type-Pushbutton Holes | Surface |
| Enclosure Disconnect Type | Single Throw Safety Switch |
| Enclosure NEMA Rating | NEMA 4 |
| Enclosure NEMA Rating | NEMA 4X |
| Enclosure NEMA Rating | NEMA 5 |
| Manufacturer | Schneider Electric |
| Component | Non-Fusible Disconnect Switch |
| Sub Component | Single Throw Safety Switch |
| Voltage | 600 VAC |
| Current | 400 Amp |
| Voltage | 600 VDC |
| Disconnect Enclosure Height | 29" |
| Disconnect Enclosure Depth | 8.88" |
| Disconnect Enclosure Width | 25.25" |
Features
Heavy duty switches isolate power in daily activities and provide an effective way to interrupt power in an emergency
Designed to satisfy individual requirements for all customers
All feature a quick-make, quick-break operating mechanism, a dual cover interlock
