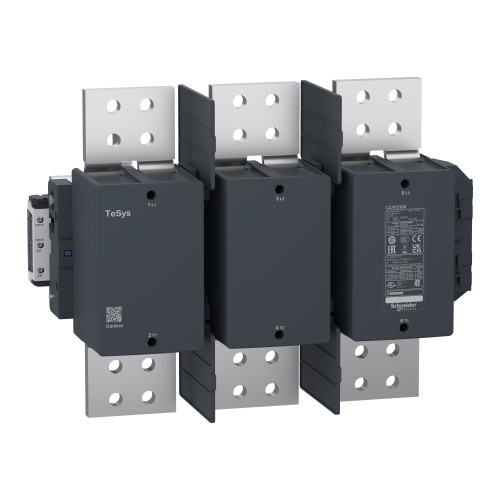

Schneider LC1F2100 TeSys F 2100A AC-1 Non-Reversing Contactor, 3P
$9,033$10,839 (-17%)
Schneider Electric LC1F2100 TeSys F 3-pole non-reversing IEC contactor, AC-1 switching up to 1000 V AC with LX1/LX9 (110–500 V AC) or LX4 (110–440 V DC) coil options — genuine Schneider parts, fast delivery from Batam.
The Schneider Electric LC1F2100 is a TeSys F non-reversing IEC contactor (3P, 3 NO) designed for AC-1 switching applications up to 1000 V AC. Supplied with flexible coil options (LX1/LX9 110–500 V AC 40/400Hz and LX4 110–440 V DC), it suits motor control, power distribution and industrial switching tasks where a robust, mid‑range IEC contactor is required.
Key Features
- 3-pole (3 NO) non-reversing TeSys F design for reliable AC-1 switching duties.
- Multiple coil options: LX1/LX9 for wide AC voltage range and LX4 for DC coil operation.
- High operating rate support — specified for up to 600 cycles/hour in demanding applications.
- Designed for elevated ambient performance, rated for operation in environments up to 55°C.
- Modular IEC footprint and accessory support; coil may be ordered separately (later selection without coil).
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Commercial Reference | LC1F2100 |
| Component | IEC Contactor (TeSys F) |
| Poles | 3 Pole |
| Auxiliary Contacts | 3 NO |
| Utilization Category | AC-1 |
| Rated Voltage | Up to 1000 V AC (as specified for AC-1 use) |
| Coil Voltage (AC) | 110–500 V AC (LX1 / LX9) — 40/400 Hz |
| Coil Voltage (DC) | 110–440 V DC (LX4) |
| Operating Rate | Up to 600 cycles/hour |
| Ambient Temperature | Operational tolerance up to 55°C |
| Notes | Coil sold separately / later selection without coil. For exact current ratings refer to Schneider datasheet — feed value for amperage is not reliable. |
Applications
Switching and motor control in industrial panels, power distribution lines, lighting and heating control, and general machinery where IEC contactors of the TeSys F family are specified.
We supply genuine Schneider Electric products through authorized channels from our Batam base, with fast delivery across Indonesia and Southeast Asia. For competitive pricing and lead times, contact us to request a quotation and confirm coil/configuration options.
