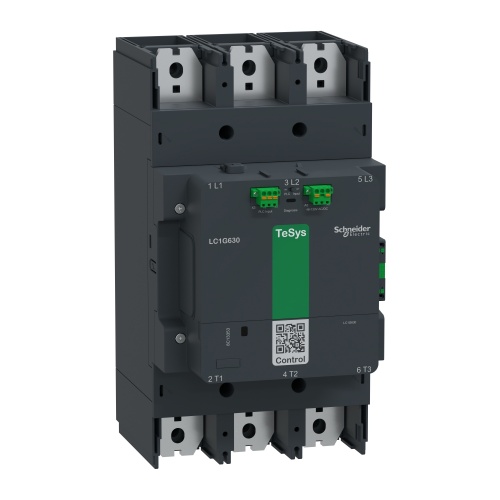

Schneider LC1G800LSEA TeSys Giga Contactor, 1050A 3P 200-500V Coil
$4,736$5,683 (-17%)
Schneider Electric LC1G800LSEA high-current contactor, nominal 800 A class (feed-listed 1050 A), three-pole with 200–500 V AC/DC coil — genuine TeSys Giga part. Fast delivery from Batam across Indonesia and Southeast Asia.

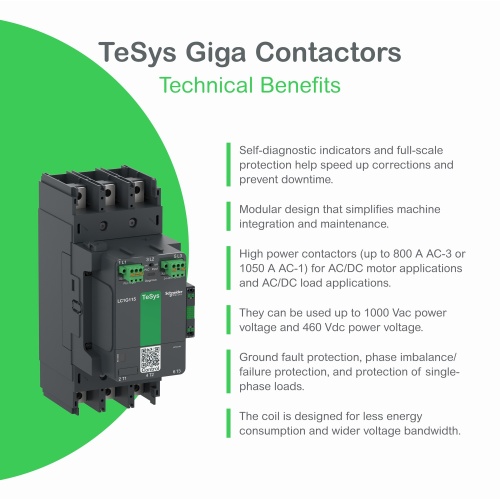

The Schneider Electric LC1G800LSEA is a TeSys Giga high-current IEC contactor engineered for heavy motor control and industrial power switching. This three-pole device delivers high current capacity in the 800 A class (some listings reference 1050 A), AC‑3 performance up to 440 V and a flexible 200–500 V AC/DC coil for remote control and automation. It incorporates auxiliary contacts and a robust design for frequent switching in pumps, compressors, conveyor drives and other continuous heavy-duty applications.

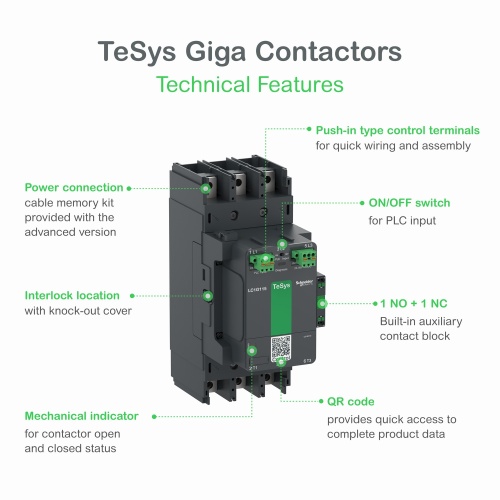

Key Features
- High-current three-pole main contacts optimized for AC‑3 motor switching and heavy-duty cycles.
- Wide 200–500 V AC/DC coil range for flexible control-voltage installations and remote operation.

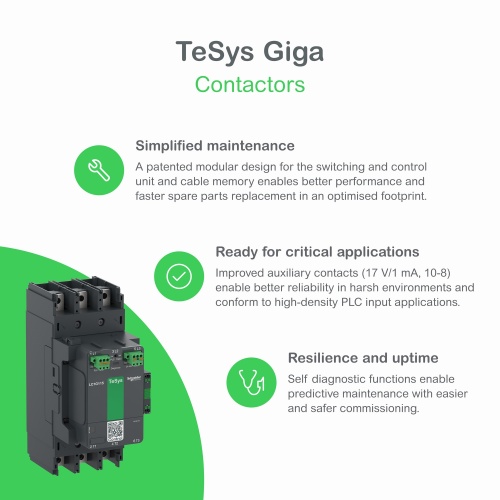

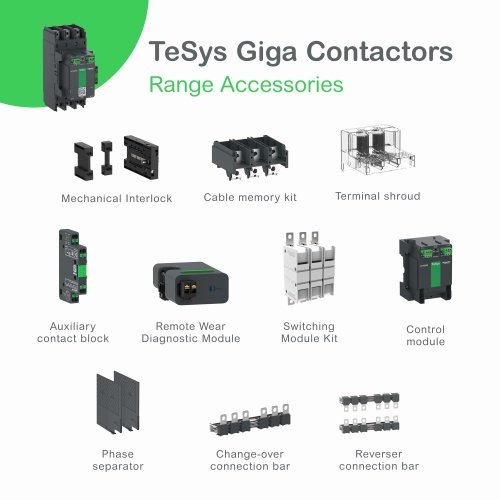

- TeSys Giga advanced design with cable memory kit to reduce downtime during maintenance.
- 1 NO + 1 NC auxiliary contact for control, signaling and interlock schemes.
- Reduced number of references simplifies selection and lowers spare-part inventory requirements.
Technical Specifications
| Manufacturer | Schneider Electric |
|---|---|
| Commercial Reference | LC1G800LSEA |
| Component | High Current Contactor (TeSys Giga) |
| Starter Poles | 3 Pole |
| Auxiliary Contacts | 1 NO + 1 NC |
| Rated Current | 800 A class (high-current contactor) |
| Starter Coil Voltage | 200–500 V AC/DC |
| Utilisation Category | AC-3, ≤ 440 V |
| Motor Power (AC-3) | 300 HP @ 200/208 V; 350 HP @ 230/240 V; 700 HP @ 460/480 V; 800 HP @ 575/600 V |
Applications
Used for large motor starters (pumps, compressors), conveyor and material handling drives, heavy process plant motors in mining and steel, and large HVAC chillers and fans where dependable high-power switching and frequent operations are required.
We supply genuine Schneider Electric TeSys Giga products through authorized distribution channels. Based in Batam, Wulan Dari delivers original industrial controls across Indonesia and Southeast Asia with competitive lead times. Contact us for technical support, bulk availability and request a quotation today.
