Schneider Electric NSYSM1812502D Spacial SM Floor-standing Sheet Steel Enclosure – , 70.87″ x 47.24″ x 19.69″ (HxWxD)
$1,759

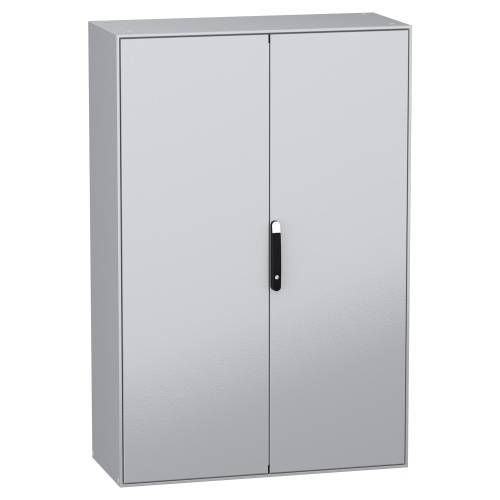

Schneider Electric NSYSM1812502D Spacial SM enclosure is made of body and door sheet steel, with a 4-point lock and black handle. The gray enclosure features two front doors, with solid construction and left/right 120° opening. The floor-standing design is accessible for front operation, with standard gland plates and…
Schneider Electric NSYSM1812502D Spacial SM enclosure is made of body and door sheet steel, with a 4-point lock and black handle. The gray enclosure features two front doors, with solid construction and left/right 120° opening. The floor-standing design is accessible for front operation, with standard gland plates and no mounting plate included.
Specifications
| Enclosure Mount Type | Free-Standing |
|---|---|
| Enclosure Number of Doors | 2 Door |
| Enclosure Depth | 19.69" |
| Manufacturer | Schneider Electric |
| Enclosure Width | 47.24" |
| Enclosure Height | 70.87" |
| Enclosure Door Type | Solid |
| Enclosure Composition | Steel |
| Component | Steel Enclosure |
| Enclosure Mounting Plate | Without Mounting Plate |
| Line | Spacial SM |
| Enclosure Gland Plate | Standard |
| Enclosure Latch Type | 4-Point Lock |
Features
Spacial SM monobloc compact steel enclosure with 2 plain front doors

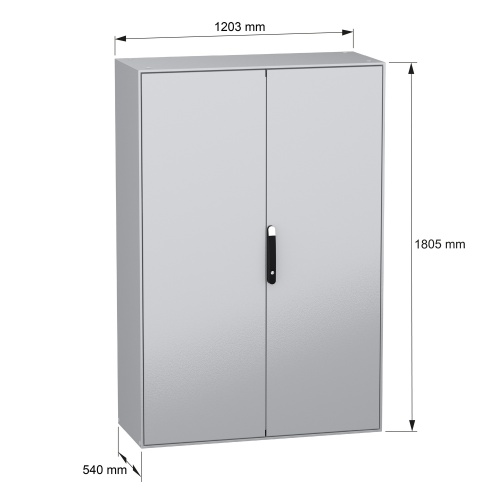

1800 x 1200 x 500 mm
Back panel welded, without mounting plate
4-Point door locking system with handle DB 5mm
Steel made
Protection IP 55, IK10, Grey RAL 7035

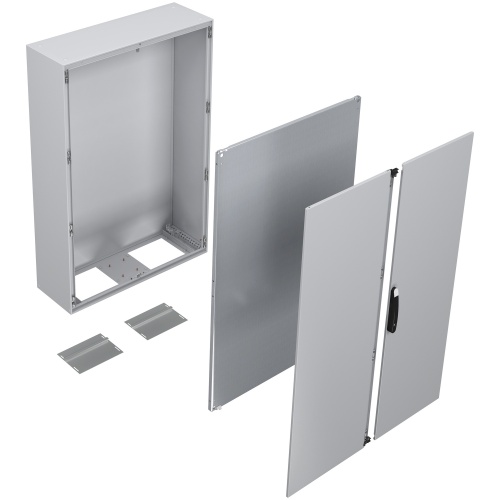

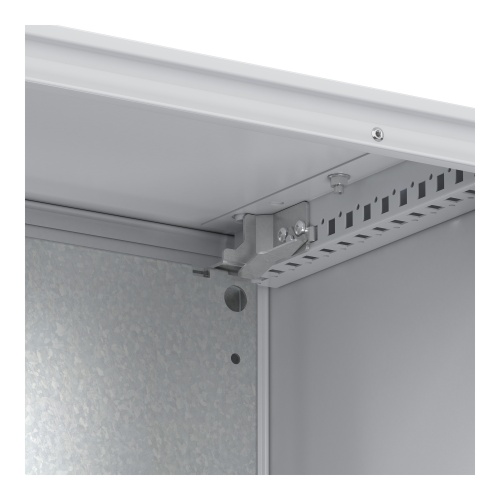

4 mounting plate support brackets and 2 parts cable gland plate included.
