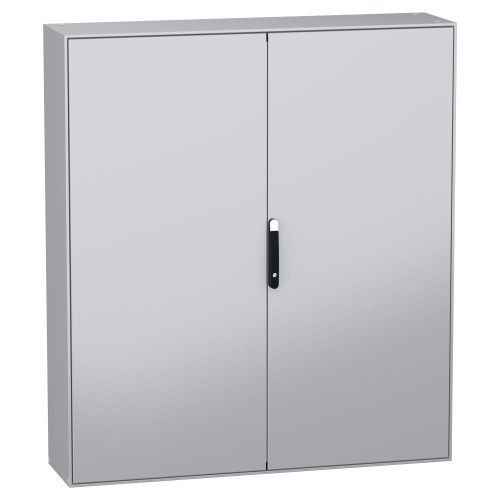

Schneider Electric NSYSM1816402D Spacial SM Floor-standing Sheet Steel Enclosure – , 70.87″ x 62.99″ x 15.75″ (HxWxD)
$1,496$1,795 (-17%)
Schneider Electric NSYSM1816402D from the Spacial range is a sturdy enclosure designed for floor-standing installation. With its body and door made of sheet steel, it features a secure 4-point lock system with a black handle insert. The enclosure's gray and black color combination gives it a sleek appearance. The…
Schneider Electric NSYSM1816402D from the Spacial range is a sturdy enclosure designed for floor-standing installation. With its body and door made of sheet steel, it features a secure 4-point lock system with a black handle insert. The enclosure's gray and black color combination gives it a sleek appearance. The front-accessible design includes two solid doors that open up to 120° on either side. It does not come with a mounting plate, but the door and mounting bracket are removable for easy access. The enclosure is suitable for standard gland plates and provides reliable protection for your equipment.
Specifications
| Enclosure Mount Type | Free-Standing |
|---|---|
| Enclosure Number of Doors | 2 Door |
| Enclosure Depth | 15.75" |
| Manufacturer | Schneider Electric |
| Enclosure Width | 62.99" |
| Enclosure Height | 70.87" |
| Enclosure Door Type | Solid |
| Enclosure Composition | Steel |
| Component | Steel Enclosure |
| Enclosure Mounting Plate | Without Mounting Plate |
| Line | Spacial SM |
| Enclosure Gland Plate | Standard |
| Enclosure Latch Type | 4-Point Lock |
Features
Spacial SM monobloc compact steel enclosure with 2 plain front doors

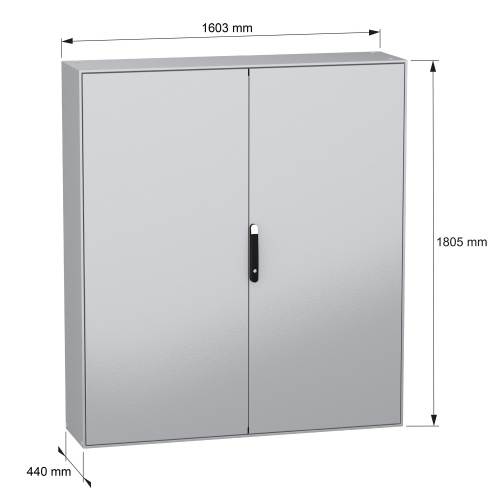

1799 x 1600 x 400 mm

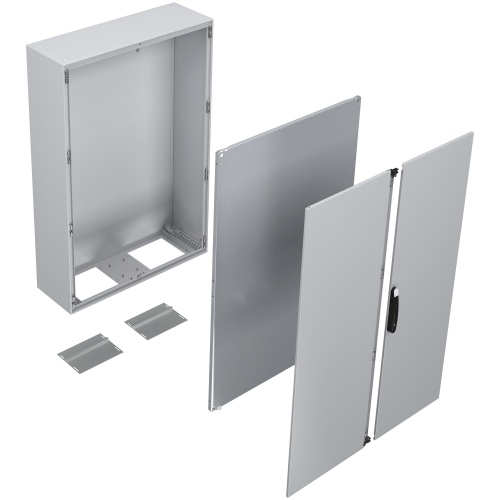

Back panel welded, without mounting plate
4-Point door locking system with handle DB 5mm
Steel made
Protection IP 55, IK10, Grey RAL 7035

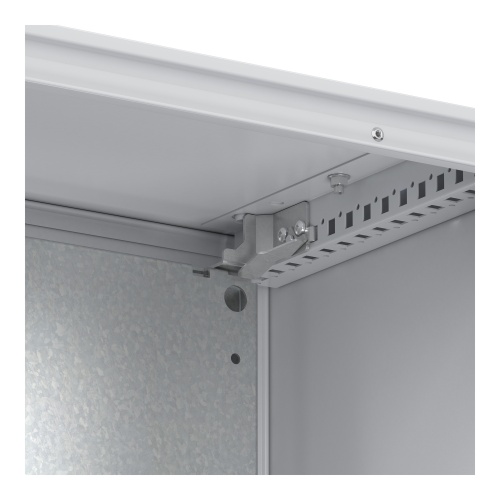

4 mounting plate support brackets and 2 parts cable gland plate included.
