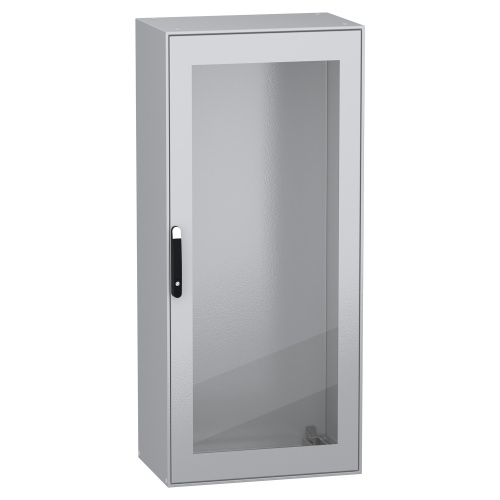

Schneider Electric NSYSM18850T Spacial SM Floor-standing Sheet Steel Enclosure – , 70.87″ x 31.5″ x 19.69″ (HxWxD)
$2,541$3,049 (-17%)
Schneider Electric NSYSM18850T is a Spacial SM enclosure with a glass door, featuring a 4-point lock and a handle with a 5mm double bar insert. The enclosure is constructed with a body and door made of sheet steel, and the hinge is made of zamak. The enclosure is available in gray (RAL 7035) with a black handle (RAL…
Schneider Electric NSYSM18850T is a Spacial SM enclosure with a glass door, featuring a 4-point lock and a handle with a 5mm double bar insert. The enclosure is constructed with a body and door made of sheet steel, and the hinge is made of zamak. The enclosure is available in gray (RAL 7035) with a black handle (RAL 9005). The door and mounting plate are removable and can be accessed from the front. The door is reversible up to 120°. It is designed for floor-standing installation and includes a standard gland plate.
Specifications
| Enclosure Mount Type | Free-Standing |
|---|---|
| Enclosure Depth | 19.69" |
| Enclosure Width | 31.5" |
| Manufacturer | Schneider Electric |
| Enclosure Height | 70.87" |
| Enclosure Composition | Steel |
| Component | Steel Enclosure |
| Enclosure Number of Doors | 1 Door |
| Enclosure Mounting Plate | Without Mounting Plate |
| Enclosure Door Type | Glass |
| Line | Spacial SM |
| Enclosure Gland Plate | Standard |
| Enclosure Latch Type | 4-Point Lock |
Features
Spacial SM monobloc compact steel enclosure with glazed door

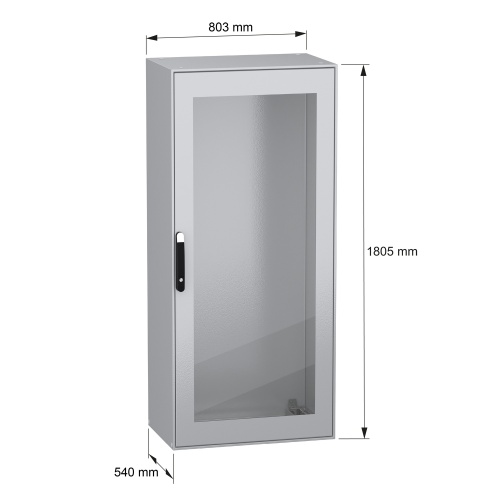

1800 x 800 x 500 mm

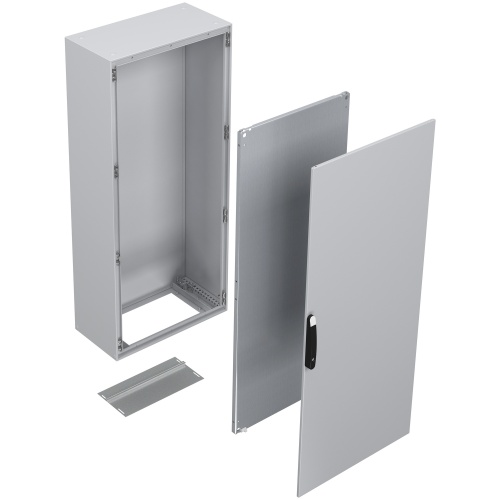

Back panel welded, without mounting plate
4-Point door locking system with handle DB 5mm
Steel made
Protection IP 55, IK08, Grey RAL 7035
4 mounting plate support brackets included.
