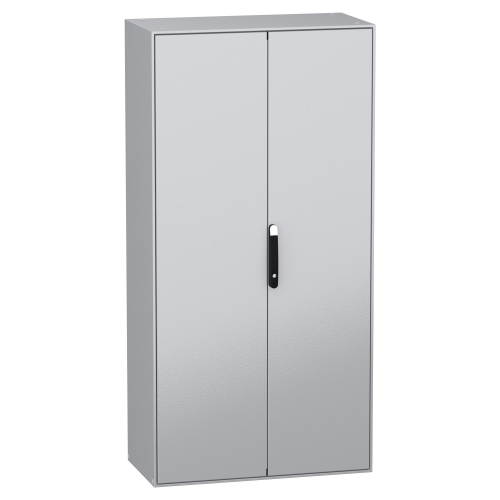

Schneider Electric NSYSM2010502D Spacial SM Floor-standing Sheet Steel Enclosure – , 78.74″ x 39.37″ x 19.69″ (HxWxD)
$1,337$1,605 (-17%)
Schneider Electric NSYSM2010502D from the Spacial range is a sturdy enclosure made of body and door sheet steel, featuring a 4-Points lock with a handle equipped with a 5 mm double bar insert. The gray RAL 7035 enclosure is complemented by a black RAL 9005 handle. The door can be easily removed via screws hinges, and…
Schneider Electric NSYSM2010502D from the Spacial range is a sturdy enclosure made of body and door sheet steel, featuring a 4-Points lock with a handle equipped with a 5 mm double bar insert. The gray RAL 7035 enclosure is complemented by a black RAL 9005 handle. The door can be easily removed via screws hinges, and the mounting plate bracket is also fastened with screws. This floor-standing model features a solid door, available with left or right 120° opening. It is designed for front operation and comes with a standard gland plate.
Specifications
| Enclosure Mount Type | Free-Standing |
|---|---|
| Enclosure Number of Doors | 2 Door |
| Enclosure Depth | 19.69" |
| Manufacturer | Schneider Electric |
| Enclosure Height | 78.74" |
| Enclosure Width | 39.37" |
| Enclosure Door Type | Solid |
| Enclosure Composition | Steel |
| Component | Steel Enclosure |
| Enclosure Mounting Plate | Without Mounting Plate |
| Line | Spacial SM |
| Enclosure Gland Plate | Standard |
| Enclosure Latch Type | 4-Point Lock |
Features

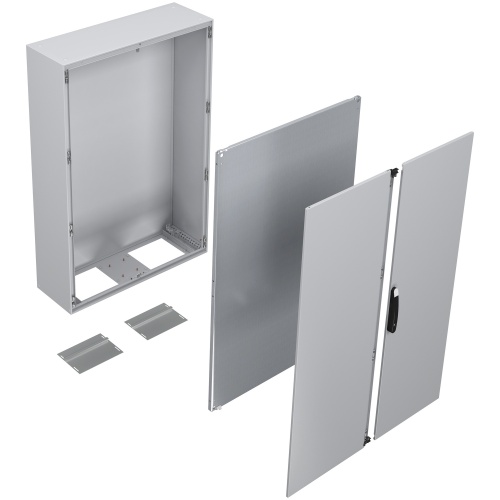

Spacial SM monobloc compact steel enclosure with 2 plain front doors

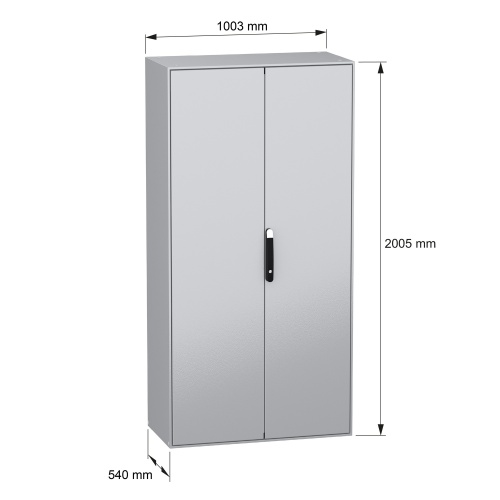

2000 x 1000 x 500 mm
Back panel welded, without mounting plate
4-Point door locking system with handle DB 5mm
Steel made
Protection IP 55, IK10, Grey RAL 7035

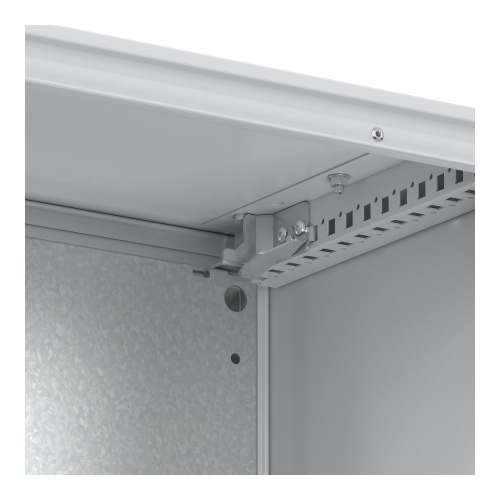

4 mounting plate support brackets and 2 parts cable gland plate included.
