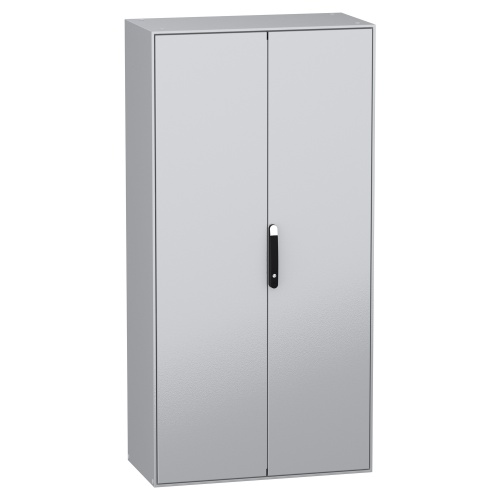

Schneider Electric NSYSM2010502DP Spacial SM Floor-standing Galvanized Steel Enclosure – , 78.74″ x 39.37″ x 19.69″ (HxWxD)
$1,462$1,754 (-17%)
Schneider Electric NSYSM2010502DP is a Spacial SM enclosure made with high-quality Galvanized steel. It features a 4-point lock system with a double bar insert handle for maximum security. The enclosure comes in a sleek gray (RAL 7035) color with a black (RAL 9005) handle. The front-opening doors are solid and can be…
Schneider Electric NSYSM2010502DP is a Spacial SM enclosure made with high-quality Galvanized steel. It features a 4-point lock system with a double bar insert handle for maximum security. The enclosure comes in a sleek gray (RAL 7035) color with a black (RAL 9005) handle. The front-opening doors are solid and can be easily removed using screws. This floor-standing enclosure is perfect for operation from the front and includes a standard gland plate.
Specifications
| Enclosure Composition | Galvanized Steel |
|---|---|
| Enclosure Mount Type | Free-Standing |
| Enclosure Number of Doors | 2 Door |
| Enclosure Depth | 19.69" |
| Manufacturer | Schneider Electric |
| Enclosure Height | 78.74" |
| Enclosure Width | 39.37" |
| Enclosure Door Type | Solid |
| Component | Steel Enclosure |
| Enclosure Mounting Plate | Plain Steel |
| Line | Spacial SM |
| Enclosure Gland Plate | Standard |
| Enclosure Latch Type | 4-Point Lock |
Features

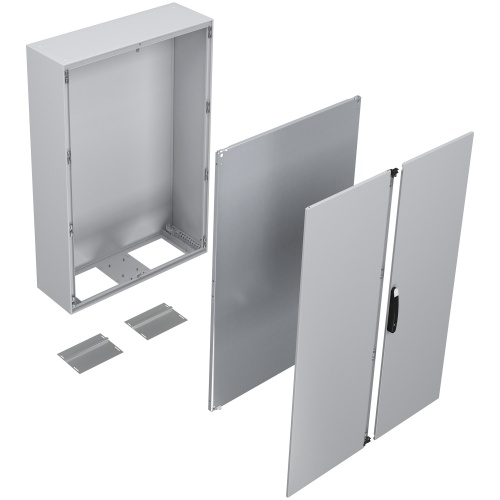

Spacial SM monobloc compact steel enclosure with 2 plain front doors

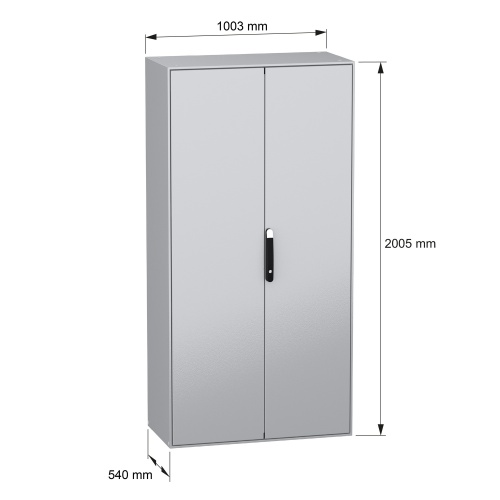

2000 x 1000 x 500 mm

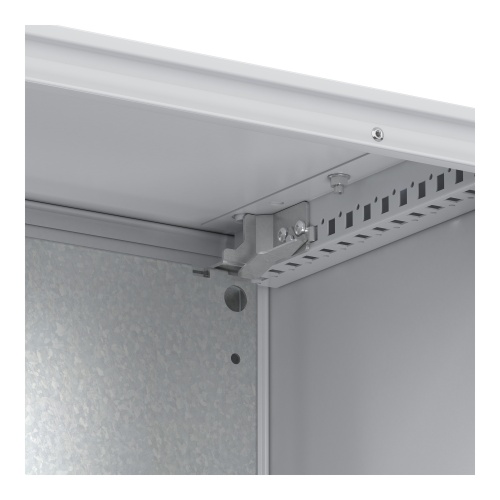

Back panel welded, mounting plate included
4-Point door locking system with handle DB 5mm
Steel made
Protection IP 55, IK10, Grey RAL 7035
4 mounting plate support brackets included.
