Schneider Electric NSYSM2012402D Spacial SM Floor-standing Sheet Steel Enclosure – , 78.74″ x 47.24″ x 15.75″ (HxWxD)
$1,327$1,592 (-17%)

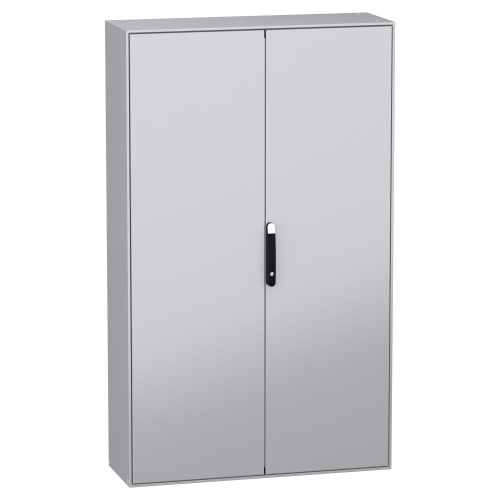

Schneider Electric NSYSM2012402D is a Spacial SM enclosure with a body and door made of sheet steel. It features a 4-Points lock and a handle with a 5 mm double bar insert. The enclosure is gray in color (RAL 7035) with a black handle (RAL 9005). The door can be easily removed and the mounting plate can be bracketed…
Schneider Electric NSYSM2012402D is a Spacial SM enclosure with a body and door made of sheet steel. It features a 4-Points lock and a handle with a 5 mm double bar insert. The enclosure is gray in color (RAL 7035) with a black handle (RAL 9005). The door can be easily removed and the mounting plate can be bracketed by screws. It has a solid door type with left and right openings of 120° each. The enclosure is front-accessible and has 2 front doors. It comes with a standard gland plate and is suitable for floor-standing installation.
Specifications
| Enclosure Mount Type | Free-Standing |
|---|---|
| Enclosure Number of Doors | 2 Door |
| Enclosure Depth | 15.75" |
| Manufacturer | Schneider Electric |
| Enclosure Width | 47.24" |
| Enclosure Height | 78.74" |
| Enclosure Door Type | Solid |
| Enclosure Composition | Steel |
| Component | Steel Enclosure |
| Enclosure Mounting Plate | Without Mounting Plate |
| Line | Spacial SM |
| Enclosure Gland Plate | Standard |
| Enclosure Latch Type | 4-Point Lock |
Features
Spacial SM monobloc compact steel enclosure with 2 plain front doors

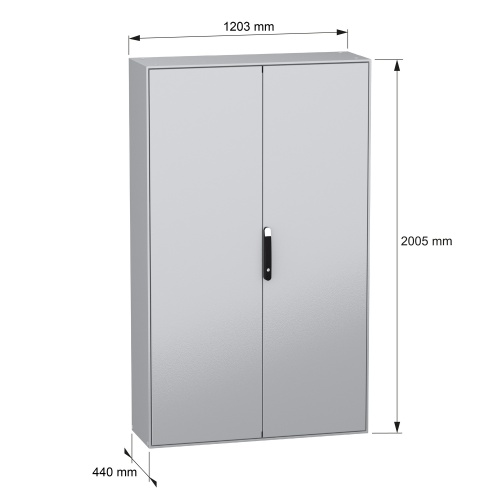

1999 x 1200 x 400 mm
Back panel welded, without mounting plate
4-Point door locking system with handle DB 5mm
Sheet steel
Protection IP 55, IK10, Grey RAL 7035

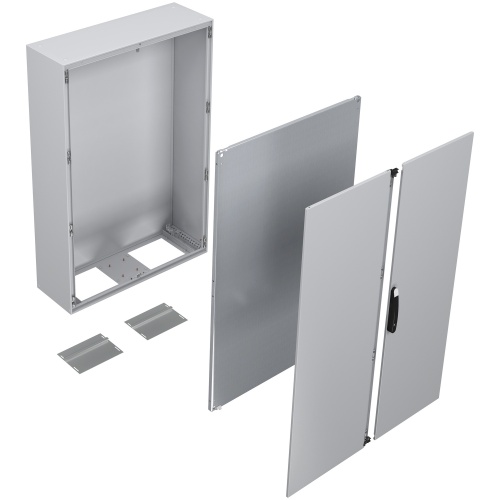

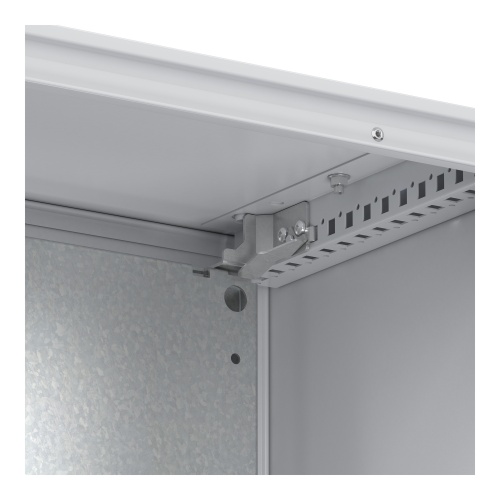

4 mounting plate support brackets and 2 parts cable gland plate included.
Reviews
There are no reviews yet.
