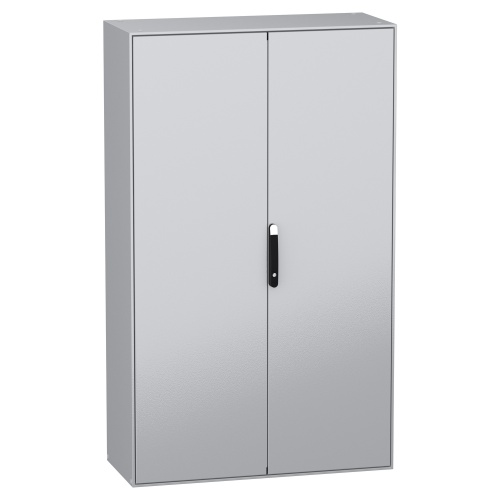

Schneider Electric NSYSM2012502D Spacial SM Floor-standing Sheet Steel Enclosure – , 78.74″ x 47.24″ x 19.69″ (HxWxD)
$1,671$2,006 (-17%)
Introducing the Schneider Electric NSYSM2012502D Spacial SM enclosure. This floor-standing unit is made from durable sheet steel (body and door) with a secure 4-Points lock and a 5 mm double bar insert handle. The 2 front doors open to a solid interior, while the left and right door versions provide ample…
Introducing the Schneider Electric NSYSM2012502D Spacial SM enclosure. This floor-standing unit is made from durable sheet steel (body and door) with a secure 4-Points lock and a 5 mm double bar insert handle. The 2 front doors open to a solid interior, while the left and right door versions provide ample accessibility. The enclosures are in a stylish Gray (RAL 7035) finish, with black handles (RAL 9005). Removable parts are easily attached using screws, including the hinge doors and mounting plate brackets. Ideal for industrial settings, this Spacial SM enclosure offers reliability and functionality.
Specifications
| Enclosure Mount Type | Free-Standing |
|---|---|
| Enclosure Number of Doors | 2 Door |
| Enclosure Depth | 19.69" |
| Manufacturer | Schneider Electric |
| Enclosure Width | 47.24" |
| Enclosure Height | 78.74" |
| Enclosure Door Type | Solid |
| Enclosure Composition | Steel |
| Component | Steel Enclosure |
| Enclosure Mounting Plate | Without Mounting Plate |
| Line | Spacial SM |
| Enclosure Gland Plate | Standard |
| Enclosure Latch Type | 4-Point Lock |
Features
Spacial SM monobloc compact steel enclosure with 2 plain front doors

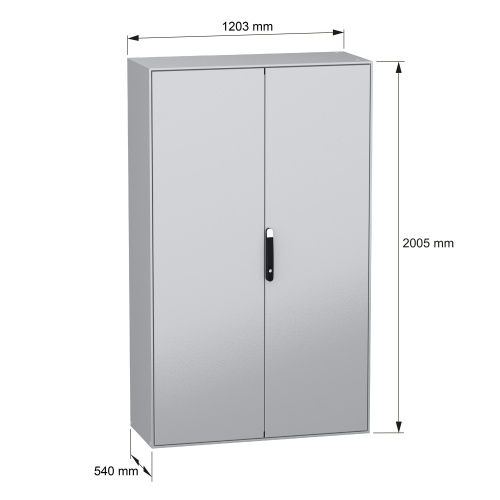

2000 x 1200 x 500 mm
Back panel welded, without mounting plate
4-Point door locking system with handle DB 5mm
Steel made
Protection IP 55, IK10, Grey RAL 7035

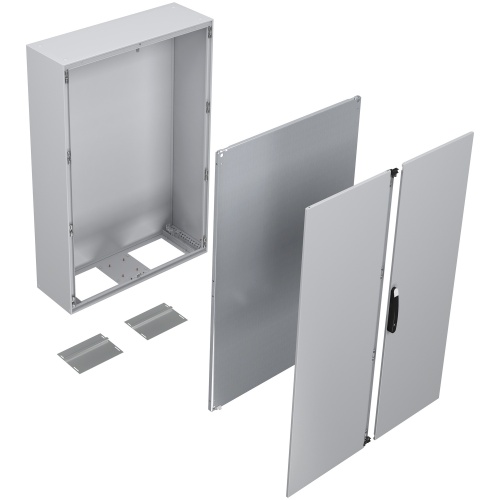

4 mounting plate support brackets and 2 parts cable gland plate included.
