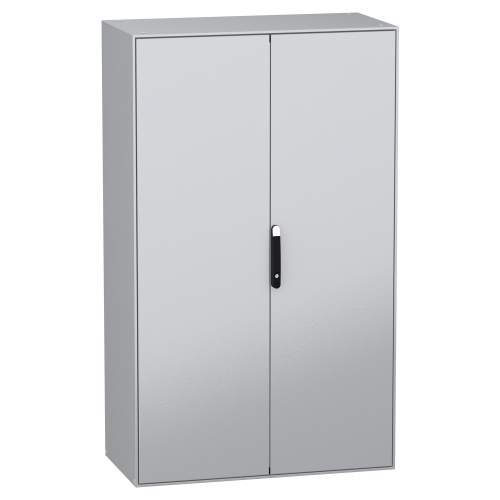

Schneider Electric NSYSM2012602DP Spacial SM Floor-standing Galvanized Steel Enclosure – , 78.74″ x 47.24″ x 23.62″ (HxWxD)
$1,980$2,376 (-17%)
Schneider Electric NSYSM2012602DP is a Spacial SM enclosure designed for floor-standing installation. It features a galvanized steel mounting plate, with a solid door that can be opened on either the left or right side (120°). The enclosure is equipped with a 4-point lock, a black handle, and a standard gland plate.…
Schneider Electric NSYSM2012602DP is a Spacial SM enclosure designed for floor-standing installation. It features a galvanized steel mounting plate, with a solid door that can be opened on either the left or right side (120°). The enclosure is equipped with a 4-point lock, a black handle, and a standard gland plate. With a gray RAL 7035 color and a front accessibility for operation, this enclosure is perfect for various industrial applications.
Specifications
| Enclosure Composition | Galvanized Steel |
|---|---|
| Enclosure Mount Type | Free-Standing |
| Enclosure Number of Doors | 2 Door |
| Enclosure Depth | 23.62" |
| Manufacturer | Schneider Electric |
| Enclosure Width | 47.24" |
| Enclosure Height | 78.74" |
| Enclosure Door Type | Solid |
| Component | Steel Enclosure |
| Enclosure Mounting Plate | Plain Steel |
| Line | Spacial SM |
| Enclosure Gland Plate | Standard |
| Enclosure Latch Type | 4-Point Lock |
Features

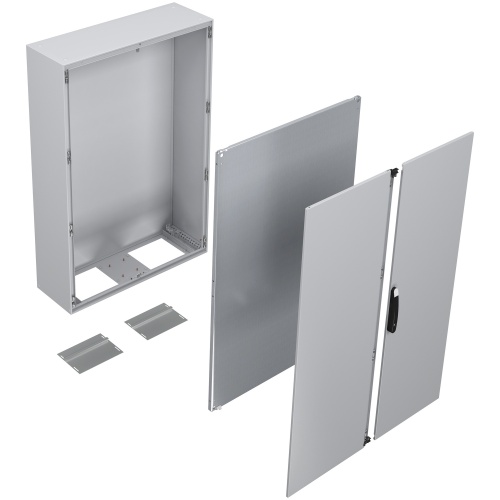

Spacial SM monobloc compact steel enclosure with 2 plain front doors

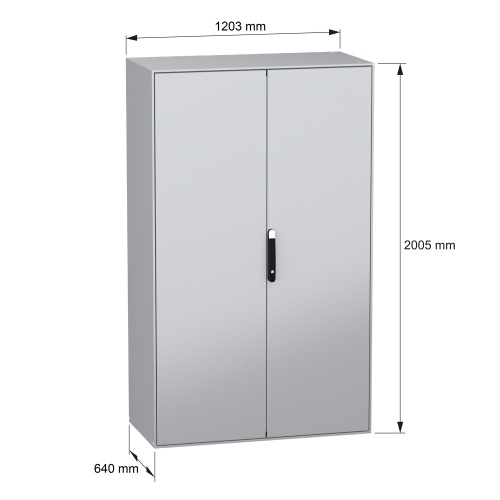

2000 x 1200 x 600 mm
Back panel welded, mounting plate included
4-Point door locking system with handle DB 5mm
Steel made
Protection IP 55, IK10, Grey RAL 7035

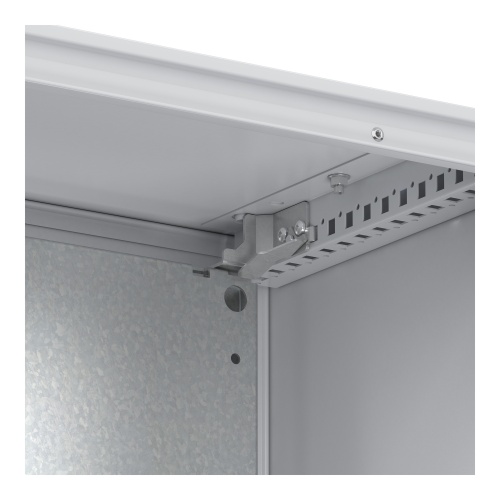

4 mounting plate support brackets included.
