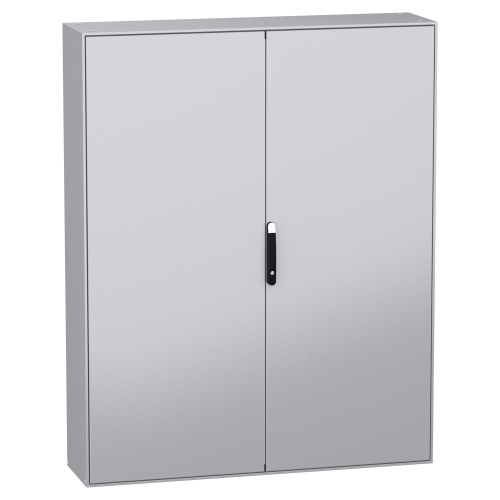

Schneider Electric NSYSM2016402DP Spacial SM Floor-standing Galvanized Steel Enclosure – , 78.74″ x 62.99″ x 15.75″ (HxWxD)
$1,423$1,708 (-17%)
Schneider Electric NSYSM2016402DP is a Spacial SM enclosure made of Galvanized steel, with a solid door that opens 120° to the left or right. It features a 4-point lock with a handle insert, offering secure storage. The enclosure is gray (RAL 7035) with a black (RAL 9005) handle. It is front-accessible with two front…
Schneider Electric NSYSM2016402DP is a Spacial SM enclosure made of Galvanized steel, with a solid door that opens 120° to the left or right. It features a 4-point lock with a handle insert, offering secure storage. The enclosure is gray (RAL 7035) with a black (RAL 9005) handle. It is front-accessible with two front doors and includes a standard gland plate. The floor-standing installation accessory type ensures stability.
Specifications
| Enclosure Composition | Galvanized Steel |
|---|---|
| Enclosure Mount Type | Free-Standing |
| Enclosure Number of Doors | 2 Door |
| Enclosure Depth | 15.75" |
| Manufacturer | Schneider Electric |
| Enclosure Width | 62.99" |
| Enclosure Height | 78.74" |
| Enclosure Door Type | Solid |
| Component | Steel Enclosure |
| Enclosure Mounting Plate | Plain Steel |
| Line | Spacial SM |
| Enclosure Gland Plate | Standard |
| Enclosure Latch Type | 4-Point Lock |
Features

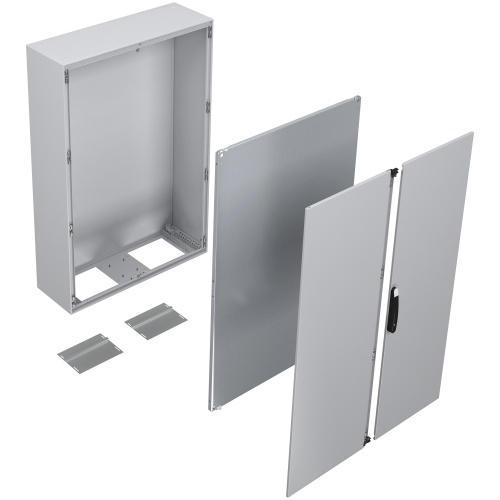

Spacial SM monobloc compact steel enclosure with 2 plain front doors

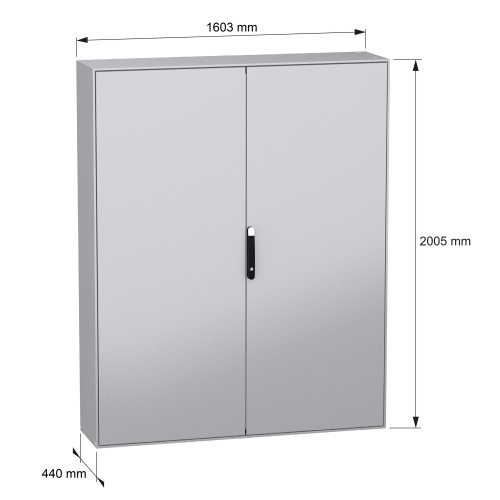

2000 x 1600 x 400 mm
Back panel welded, mounting plate included
4-Point door locking system with handle DB 5mm
Sheet steel, galvanized steel for mounting plate
Protection IP 55, IK10, Grey RAL 7035

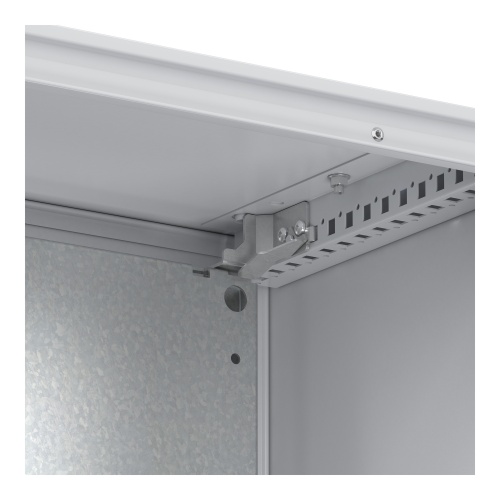

4 mounting plate support brackets included.
