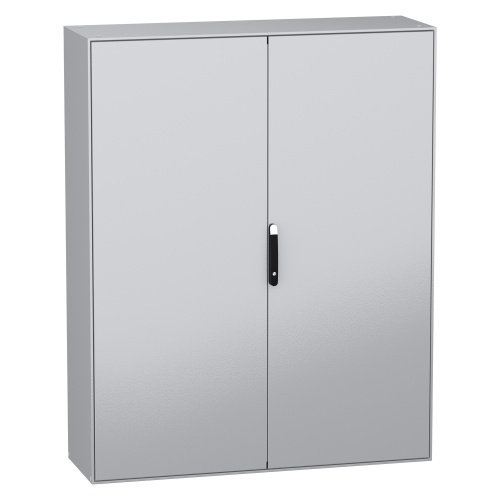

Schneider Electric NSYSM2016502D Spacial SM Floor-standing Sheet Steel Enclosure – , 78.74″ x 62.99″ x 19.69″ (HxWxD)
$2,149$2,579 (-17%)
Schneider Electric Spacial SM is a floor-standing enclosure with a durable body and door made of sheet steel. It features a 4-point lock and a handle with a 5mm double bar insert for secure operation. The enclosure is gray (RAL 7035) with a black (RAL 9005) handle. The doors can be opened on either the left or right…
Schneider Electric Spacial SM is a floor-standing enclosure with a durable body and door made of sheet steel. It features a 4-point lock and a handle with a 5mm double bar insert for secure operation. The enclosure is gray (RAL 7035) with a black (RAL 9005) handle. The doors can be opened on either the left or right side, up to 120°. The front access makes it easy to reach the equipment inside. The enclosure has two doors and a solid door type. It does not include a mounting plate. The gland plate is of a standard type.
Specifications
| Enclosure Mount Type | Free-Standing |
|---|---|
| Enclosure Number of Doors | 2 Door |
| Enclosure Depth | 19.69" |
| Manufacturer | Schneider Electric |
| Enclosure Width | 62.99" |
| Enclosure Height | 78.74" |
| Enclosure Door Type | Solid |
| Enclosure Composition | Steel |
| Component | Steel Enclosure |
| Enclosure Mounting Plate | Without Mounting Plate |
| Line | Spacial SM |
| Enclosure Gland Plate | Standard |
| Enclosure Latch Type | 4-Point Lock |
Features

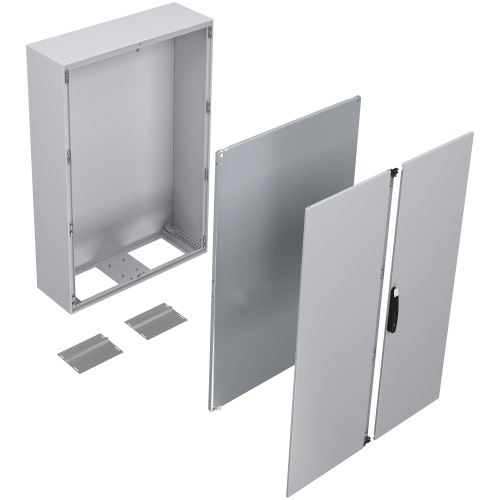

Spacial SM monobloc compact steel enclosure with 2 plain front doors

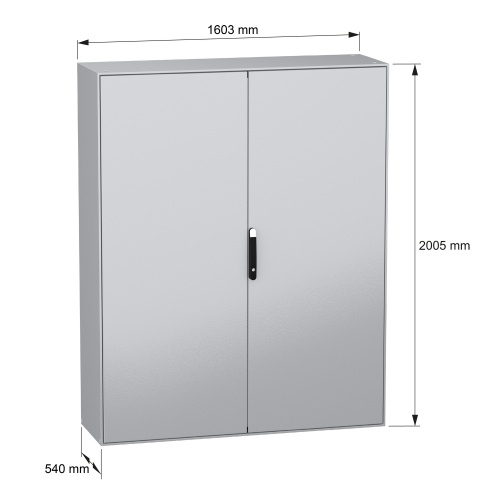

2000 x 1600 x 500 mm
Back panel welded, without mounting plate
4-Point door locking system with handle DB 5mm
Steel made
Protection IP 55, IK10, Grey RAL 7035

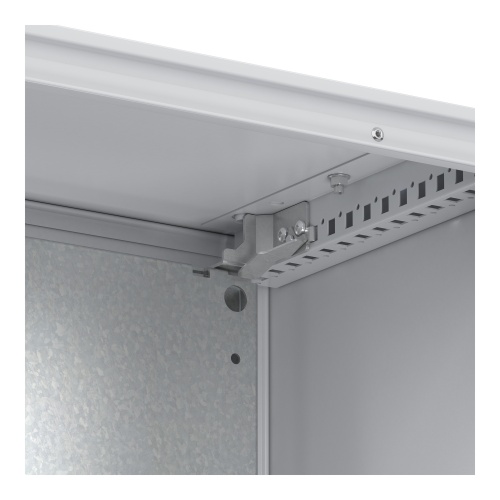

4 mounting plate support brackets and 2 parts cable gland plate included.
