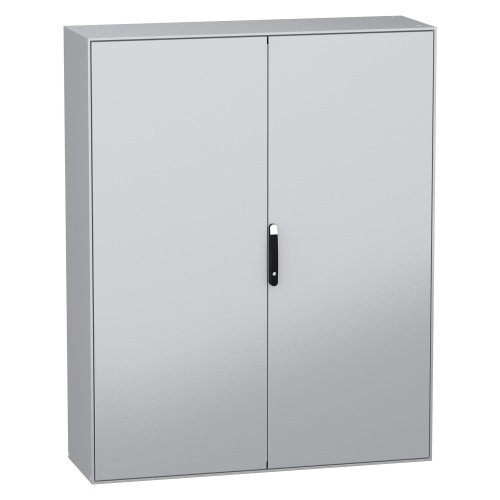

Schneider Electric NSYSM2016502DP Spacial SM Floor-standing Galvanized Steel Enclosure – , 78.74″ x 62.99″ x 19.69″ (HxWxD)
$2,344$2,813 (-17%)
Schneider Electric Spacial SM is a front-accessible, floor-standing enclosure from their Spacial range. It features a galvanized steel mounting plate, with a solid door that can be opened on the left or right side at a 120° angle. The enclosure is equipped with a 4-point lock and a handle with a 5mm double bar insert…
Schneider Electric Spacial SM is a front-accessible, floor-standing enclosure from their Spacial range. It features a galvanized steel mounting plate, with a solid door that can be opened on the left or right side at a 120° angle. The enclosure is equipped with a 4-point lock and a handle with a 5mm double bar insert for security. The gray RAL 7035 enclosure color and black RAL 9005 handle provide an attractive appearance. The removable parts, including the door and mounting plate, can be easily accessed using screws. This enclosure is designed for standard installations and comes with a plain mounting plate bracket.
Specifications
| Enclosure Composition | Galvanized Steel |
|---|---|
| Enclosure Mount Type | Free-Standing |
| Enclosure Number of Doors | 2 Door |
| Enclosure Depth | 19.69" |
| Manufacturer | Schneider Electric |
| Enclosure Width | 62.99" |
| Enclosure Height | 78.74" |
| Enclosure Door Type | Solid |
| Component | Steel Enclosure |
| Enclosure Mounting Plate | Plain Steel |
| Line | Spacial SM |
| Enclosure Gland Plate | Standard |
| Enclosure Latch Type | 4-Point Lock |
Features
Spacial SM monobloc compact steel enclosure with 2 plain front doors

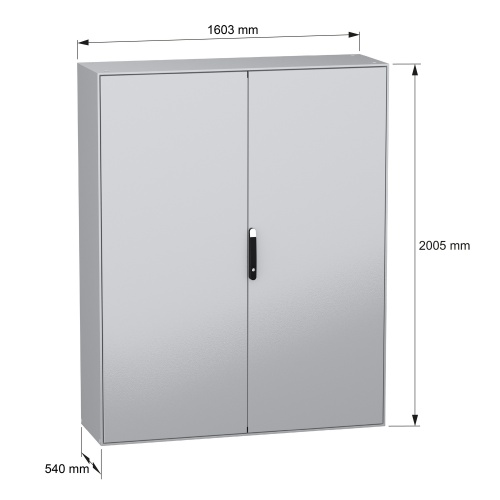

2000 x 1600 x 500 mm

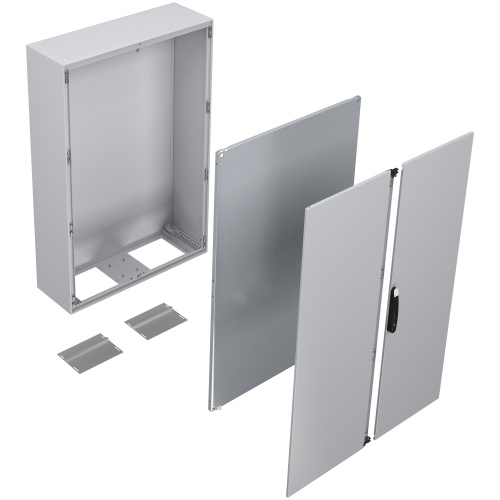

Back panel welded, mounting plate included
4-Point door locking system with handle DB 5mm
Sheet steel, galvanized steel for mounting plate
Protection IP 55, IK10, Grey RAL 7035

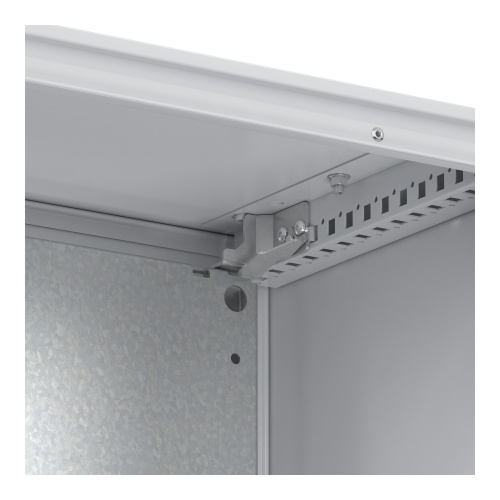

4 mounting plate support brackets included.
