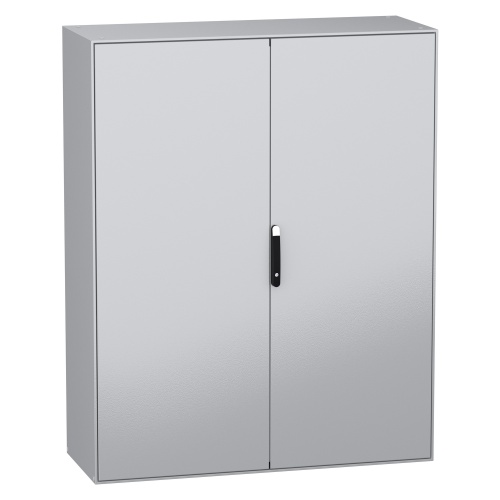

Schneider Electric NSYSM2016602DP Spacial SM Floor-standing Galvanized Steel Enclosure – , 78.74″ x 62.99″ x 23.62″ (HxWxD)
$2,553$3,063 (-17%)
Schneider Electric Spacial SM is a floor-standing enclosure (NSYSM2016602DP) with a solid door (left/right 120° opening). It includes a galvanized steel mounting plate and a 4-point lock system with a handle featuring a 5mm double bar insert. The enclosure is gray (RAL 7035) with a black handle (RAL 9005). The…
Schneider Electric Spacial SM is a floor-standing enclosure (NSYSM2016602DP) with a solid door (left/right 120° opening). It includes a galvanized steel mounting plate and a 4-point lock system with a handle featuring a 5mm double bar insert. The enclosure is gray (RAL 7035) with a black handle (RAL 9005). The removable parts are the door and mounting plate, which are held in place by screws. This front-accessible unit has two doors, a standard gland plate, and is part of the Spacial range.
Specifications
| Enclosure Composition | Galvanized Steel |
|---|---|
| Enclosure Mount Type | Free-Standing |
| Enclosure Number of Doors | 2 Door |
| Enclosure Depth | 23.62" |
| Manufacturer | Schneider Electric |
| Enclosure Width | 62.99" |
| Enclosure Height | 78.74" |
| Enclosure Door Type | Solid |
| Component | Steel Enclosure |
| Enclosure Mounting Plate | Plain Steel |
| Line | Spacial SM |
| Enclosure Gland Plate | Standard |
| Enclosure Latch Type | 4-Point Lock |
Features
Spacial SM monobloc compact steel enclosure with 2 plain front doors

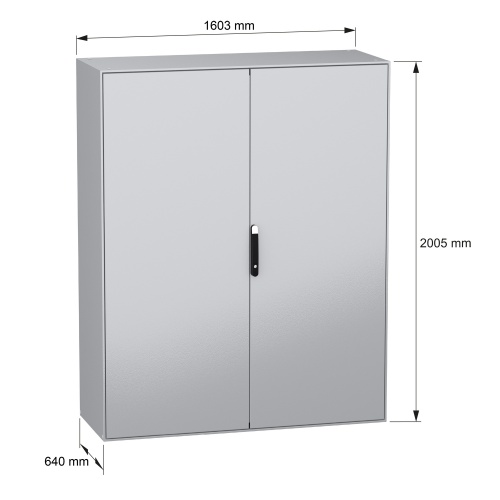

1999 x 1600 x 600 mm

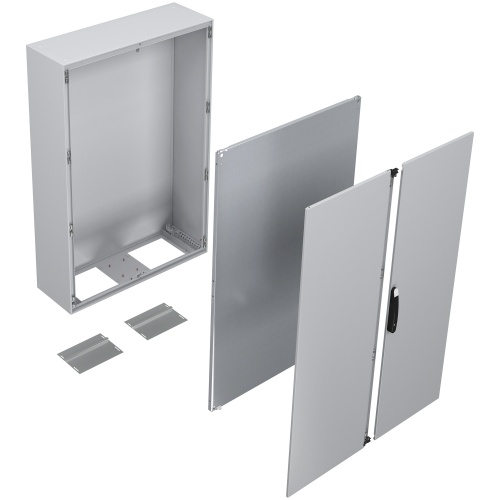

Back panel welded, mounting plate included
4-Point door locking system with handle DB 5mm
Sheet steel, galvanized steel for mounting plate
Protection IP 55, IK10, Grey RAL 7035

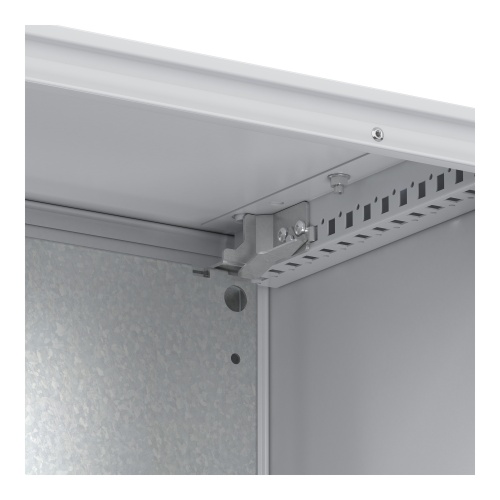

4 mounting plate support brackets included.
