Schneider Electric NSYSM20640T Spacial SM Floor-standing Sheet Steel Enclosure – , 78.74″ x 23.62″ x 15.75″ (HxWxD)
$1,379

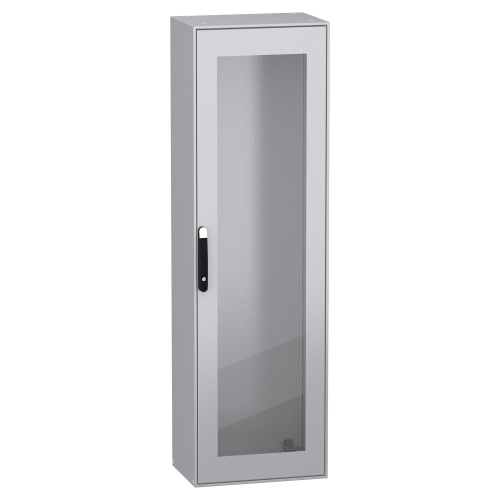

Schneider Electric NSYSM20640T, part of the Spacial range, is a front-accessible floor-standing enclosure. It features a glass door with a reversible 120° opening and a 4-point lock with a black handle. The body is made of sheet steel, and the hinge is zamak. The enclosure is in gray (RAL 7035) with a black (RAL 9005)…
Schneider Electric NSYSM20640T, part of the Spacial range, is a front-accessible floor-standing enclosure. It features a glass door with a reversible 120° opening and a 4-point lock with a black handle. The body is made of sheet steel, and the hinge is zamak. The enclosure is in gray (RAL 7035) with a black (RAL 9005) handle. Removable parts include the door (secured by screws) and mounting plate brackets. It does not include a mounting plate, and the gland plate is standard.
Specifications
| Enclosure Mount Type | Free-Standing |
|---|---|
| Enclosure Depth | 15.75" |
| Manufacturer | Schneider Electric |
| Enclosure Height | 78.74" |
| Enclosure Width | 23.62" |
| Enclosure Composition | Steel |
| Component | Steel Enclosure |
| Enclosure Number of Doors | 1 Door |
| Enclosure Mounting Plate | Without Mounting Plate |
| Enclosure Door Type | Glass |
| Line | Spacial SM |
| Enclosure Gland Plate | Standard |
| Enclosure Latch Type | 4-Point Lock |
Features
Spacial SM monobloc compact steel enclosure with glazed front door

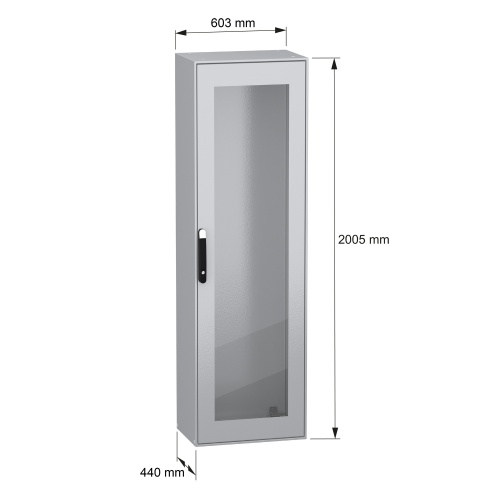

2000 x 600 x 400 mm
Back panel welded, without mounting plate
4-Point door locking system with handle DB 5mm
Sheet steel
Protection IP 55, IK08, Grey RAL 7035
4 mounting plate support brackets included.
