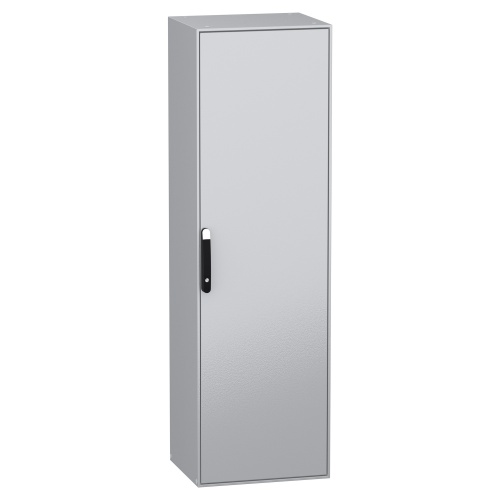

Schneider Electric NSYSM20650 Spacial SM Floor-standing Sheet Steel Enclosure – , 78.74″ x 23.62″ x 19.69″ (HxWxD)
$1,682
Schneider Electric NSYSM20650 from the Spacial range is a sturdy enclosure made of body and door sheet steel in gray (RAL 7035). It features a 4-Point lock with a black handle (RAL 9005) and a reversible solid door that opens 120°. This floor-standing unit has a front-accessible design with one door and comes without…
Schneider Electric NSYSM20650 from the Spacial range is a sturdy enclosure made of body and door sheet steel in gray (RAL 7035). It features a 4-Point lock with a black handle (RAL 9005) and a reversible solid door that opens 120°. This floor-standing unit has a front-accessible design with one door and comes without a mounting plate. The installation accessory type is standard, making it suitable for various applications.
Specifications
| Enclosure Mount Type | Free-Standing |
|---|---|
| Enclosure Depth | 19.69" |
| Manufacturer | Schneider Electric |
| Enclosure Height | 78.74" |
| Enclosure Width | 23.62" |
| Enclosure Door Type | Solid |
| Enclosure Composition | Steel |
| Component | Steel Enclosure |
| Enclosure Number of Doors | 1 Door |
| Enclosure Mounting Plate | Without Mounting Plate |
| Line | Spacial SM |
| Enclosure Gland Plate | Standard |
| Enclosure Latch Type | 4-Point Lock |
Features
Spacial SM monobloc compact steel enclosure with plain front door

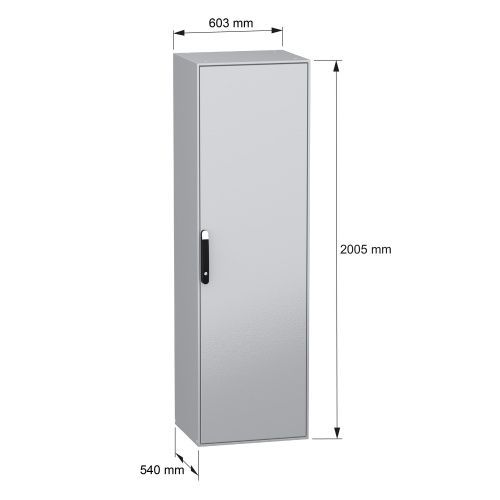

2000 x 600 x 500 mm
Back panel welded, without mounting plate
4-Point door locking system with handle DB 5mm
Steel made
Protection IP 55, IK10, Grey RAL 7035
4 mounting plate support brackets and 2 parts cable gland plate included.
