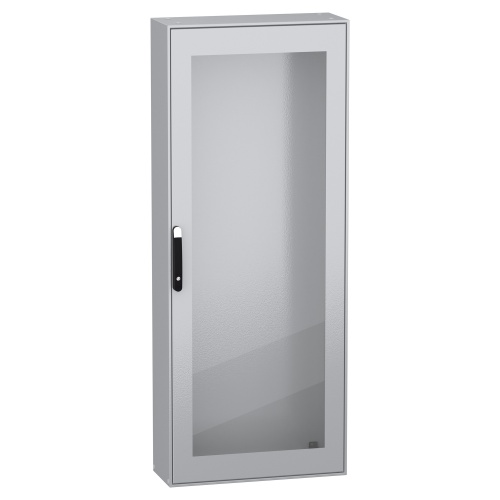

Schneider Electric NSYSM20830T Spacial SM Floor-standing Sheet Steel Enclosure – , 78.74″ x 31.5″ x 11.81″ (HxWxD)
$1,252$1,502 (-17%)
Schneider Electric NSYSM20830T Spacial SM is a floor-standing enclosure with a glass door and a reversible opening side. It features a 4-Point lock with a handle that has a 5 mm double bar insert. The enclosure is made of high-quality materials, including a body and door made of sheet steel and a hinge made of zamak.…
Schneider Electric NSYSM20830T Spacial SM is a floor-standing enclosure with a glass door and a reversible opening side. It features a 4-Point lock with a handle that has a 5 mm double bar insert. The enclosure is made of high-quality materials, including a body and door made of sheet steel and a hinge made of zamak. The enclosure is gray in color with a black handle. It has a front accessibility for operation and includes a standard gland plate. The door and mounting plate are removable and secured by screws. No mounting plate is provided.
Specifications
| Enclosure Mount Type | Free-Standing |
|---|---|
| Enclosure Depth | 11.81" |
| Enclosure Width | 31.5" |
| Manufacturer | Schneider Electric |
| Enclosure Height | 78.74" |
| Enclosure Composition | Steel |
| Component | Steel Enclosure |
| Enclosure Number of Doors | 1 Door |
| Enclosure Mounting Plate | Without Mounting Plate |
| Enclosure Door Type | Glass |
| Line | Spacial SM |
| Enclosure Gland Plate | Standard |
| Enclosure Latch Type | 4-Point Lock |
Features
Spacial SM monobloc compact steel enclosure with glazed door

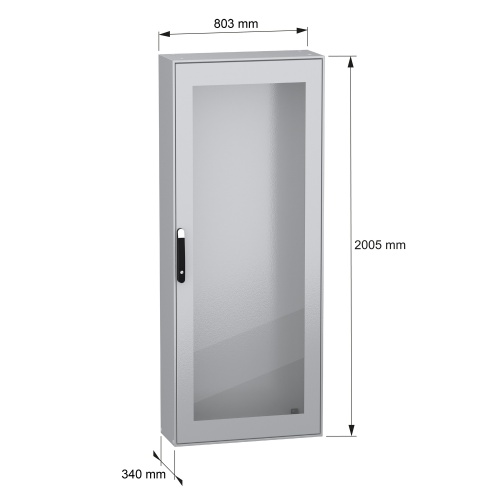

2000 x 800 x 300 mm
Back panel welded, without mounting plate
4-Point door locking system with handle DB 5mm
Steel made
Protection IP 55, IK08, Grey RAL 7035
4 mounting plate support brackets included.
