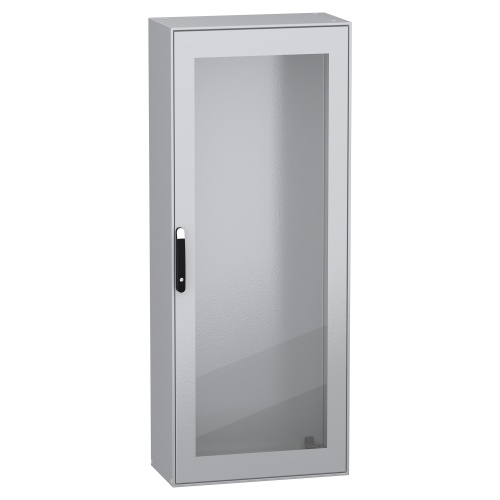

Schneider Electric NSYSM20840T Spacial SM Floor-standing Sheet Steel Enclosure – , 78.74″ x 31.5″ x 15.75″ (HxWxD)
$1,277$1,533 (-17%)
Schneider Electric NSYSM20840T Spacial SM is a floor-standing enclosure with a glass door and a reversible 120° opening. It offers a secure design with a 4-point lock and a black handle with a 5mm double bar insert. The enclosure is made of sheet steel and features a gray RAL 7035 color. It has one front door and a…
Schneider Electric NSYSM20840T Spacial SM is a floor-standing enclosure with a glass door and a reversible 120° opening. It offers a secure design with a 4-point lock and a black handle with a 5mm double bar insert. The enclosure is made of sheet steel and features a gray RAL 7035 color. It has one front door and a standard gland plate.
Specifications
| Enclosure Mount Type | Free-Standing |
|---|---|
| Enclosure Depth | 15.75" |
| Enclosure Width | 31.5" |
| Manufacturer | Schneider Electric |
| Enclosure Height | 78.74" |
| Enclosure Composition | Steel |
| Component | Steel Enclosure |
| Enclosure Number of Doors | 1 Door |
| Enclosure Mounting Plate | Without Mounting Plate |
| Enclosure Door Type | Glass |
| Line | Spacial SM |
| Enclosure Gland Plate | Standard |
| Enclosure Latch Type | 4-Point Lock |
Features
Spacial SM monobloc compact steel enclosure with glazed door

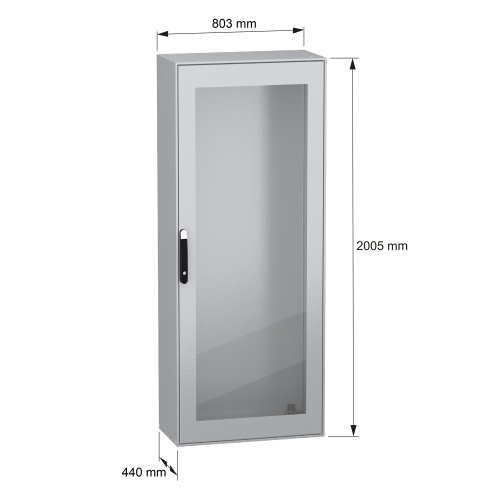

2000 x 800 x 400 mm
Back panel welded, without mounting plate
4-Point door locking system with handle DB 5mm
Steel made
Protection IP 55, IK08, Grey RAL 7035
4 mounting plate support brackets included.
